| Manufacturer Part Number: | JANTXV2N4150S |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 70V 10A TO-39 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTXV2N4150S Datasheet |
| Internal Part Number | 898-JANTXV2N4150S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/394 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 10A | |
| Voltage - Collector Emitter Breakdown (Max) | 70V | |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 1A, 10A | |
| Current - Collector Cutoff (Max) | 10µA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 5A, 5V | |
| Power - Max | 1W | |
| Frequency - Transition | - | |
| Mounting Type | Through Hole | |

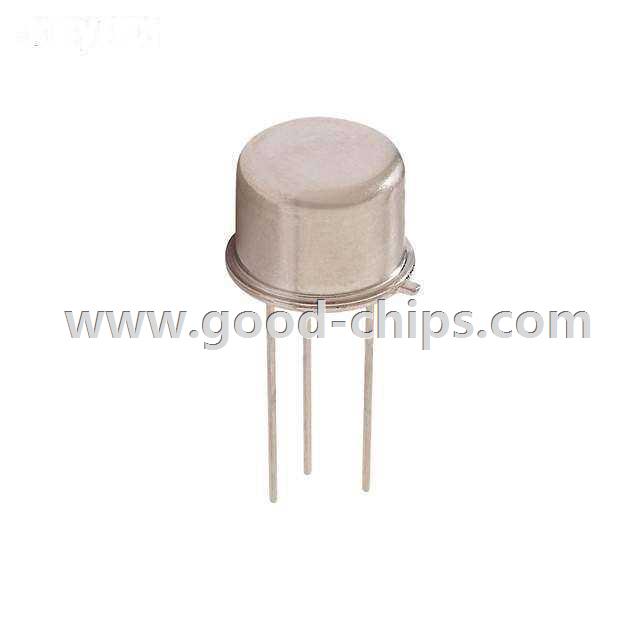

| Package / Case | TO-205AD, TO-39-3 Metal Can | |
| Supplier Device Package | TO-39 (TO-205AD) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTXV2N4150S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTXV2N4150S is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTXV2N4150S is new and unused, you can buy JANTXV2N4150S Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTXV2N4150S.
