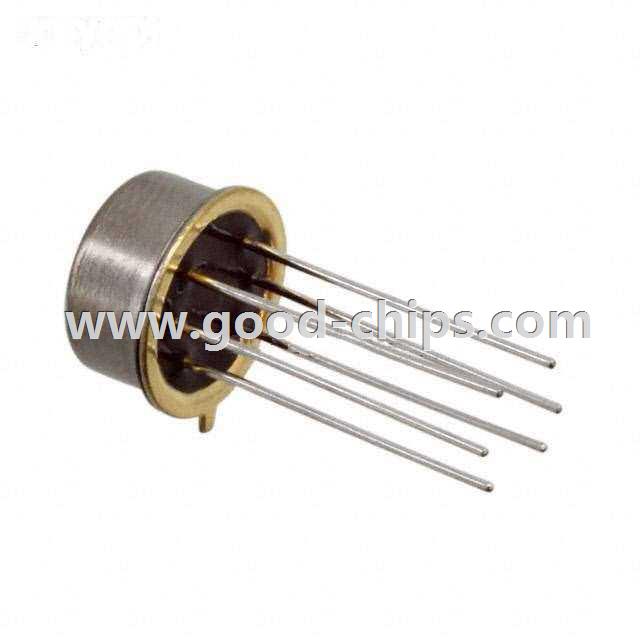

| Manufacturer Part Number: | JANTXV2N3810 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - Bipolar (BJT) - Arrays |
| Available Quantity: | 9203 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS 2PNP 60V 0.05A TO78 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTXV2N3810 Datasheet |
| Internal Part Number | 898-JANTXV2N3810 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | PNP Transistor Arrays | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Arrays | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/336 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Transistor Type | 2 PNP (Dual) | |
| Current - Collector (Ic) (Max) | 50mA | |
| Voltage - Collector Emitter Breakdown (Max) | 60V | |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100µA, 1mA | |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 1mA, 5V | |
| Power - Max | 350mW | |
| Frequency - Transition | - | |
| Mounting Type | Through Hole | |
| Package / Case | TO-78-6 Metal Can | |
| Supplier Device Package | TO-78-6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTXV2N3810 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTXV2N3810 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTXV2N3810 is new and unused, you can buy JANTXV2N3810 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTXV2N3810.
