Manufacturer Part Number: | JANTXV1N6492 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9021 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 45V 3.6A TO205AF |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JANTXV1N6492 Datasheet |
Internal Part Number | 898-JANTXV1N6492 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | High-Reliability Semiconductors | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Microsemi IRE Division | |
Series | Military, MIL-PRF-19500/567 | |
Packaging | Bulk | |
Part Status | Quote Required | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 45V | |
Current - Average Rectified (Io) | 3.6A | |
Voltage - Forward (Vf) (Max) @ If | 560mV @ 2A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 2mA @ 45V | |
Capacitance @ Vr, F | 450pF @ 5V, 1MHz | |
Mounting Type | Through Hole | |

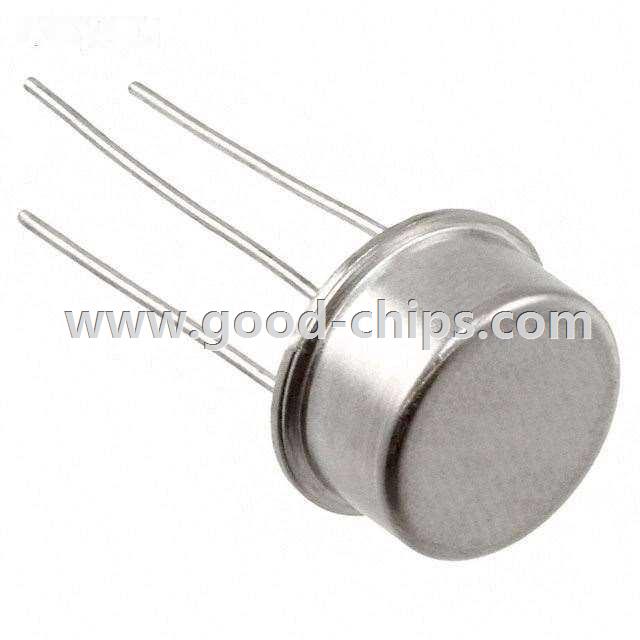

Package / Case | TO-205AF Metal Can | |
Supplier Device Package | TO-205AF (TO-39) | |
Operating Temperature - Junction | -65°C ~ 175°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JANTXV1N6492 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JANTXV1N6492 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTXV1N6492 is new and unused, you can buy JANTXV1N6492 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTXV1N6492.
