Manufacturer Part Number: | JANTXV1N6118AUS |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 25.1VWM BSQMELF |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JANTXV1N6118AUS Datasheet |
Internal Part Number | 898-JANTXV1N6118AUS | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Microsemi IRE Division | |
Series | Military, MIL-PRF-19500/516 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | - | |
Bidirectional Channels | 1 | |
Voltage - Reverse Standoff (Typ) | 25.1V | |
Voltage - Breakdown (Min) | 31.4V | |
Voltage - Clamping (Max) @ Ipp | 45.7V | |
Current - Peak Pulse (10/1000µs) | 10.9A | |
Power - Peak Pulse | 500W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

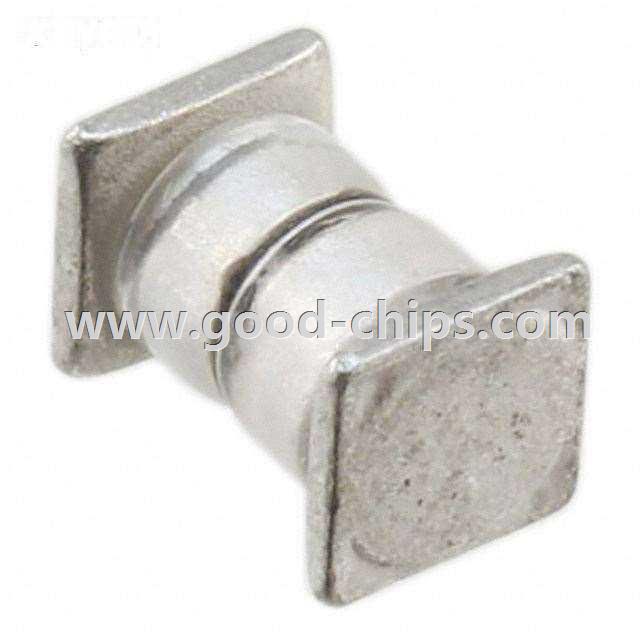

Package / Case | SQ-MELF, B | |
Supplier Device Package | B, SQ-MELF | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JANTXV1N6118AUS | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JANTXV1N6118AUS is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTXV1N6118AUS is new and unused, you can buy JANTXV1N6118AUS Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTXV1N6118AUS.
