| Manufacturer Part Number: | JANTXV1N3045CUR-1 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

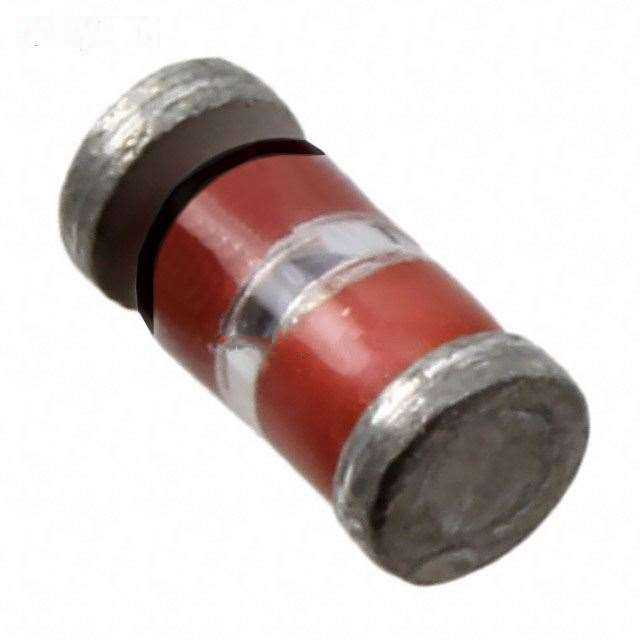

| Description: | Zener Diode 110V 1W ±2% Surface Mount DO-213AB (MELF, LL41) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTXV1N3045CUR-1 Datasheet |
| Internal Part Number | 898-JANTXV1N3045CUR-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/115 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 110V | |
| Tolerance | ±2% | |
| Power - Max | 1W | |
| Impedance (Max) (Zzt) | 450 Ohm | |
| Current - Reverse Leakage @ Vr | 10µA @ 83.6V | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 200mA | |
| Operating Temperature | -55°C ~ 175°C | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-213AB, MELF (Glass) | |
| Supplier Device Package | DO-213AB (MELF, LL41) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTXV1N3045CUR-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTXV1N3045CUR-1 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTXV1N3045CUR-1 is new and unused, you can buy JANTXV1N3045CUR-1 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTXV1N3045CUR-1.
