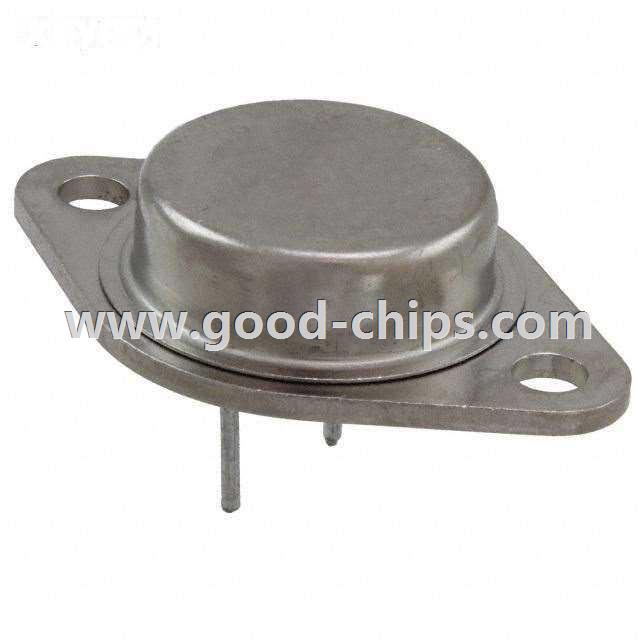

| Manufacturer Part Number: | JANTX2N6804 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 100V 11A TO-204AA |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX2N6804 Datasheet |
| Internal Part Number | 898-JANTX2N6804 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High Reliability Power / Military MOSFETs High-Reliability Semiconductors | |
| PCN Obsolescence/ EOL | Multiple Devices 12/Jun/2015 Last Time Buy Revision 08/Jul/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/562 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) | |
| Rds On (Max) @ Id, Vgs | 360 mOhm @ 11A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 29nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | - | |
| Power - Max | 75W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-204AA, TO-3 | |
| Supplier Device Package | TO-204AA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX2N6804 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX2N6804 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX2N6804 is new and unused, you can buy JANTX2N6804 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX2N6804.
