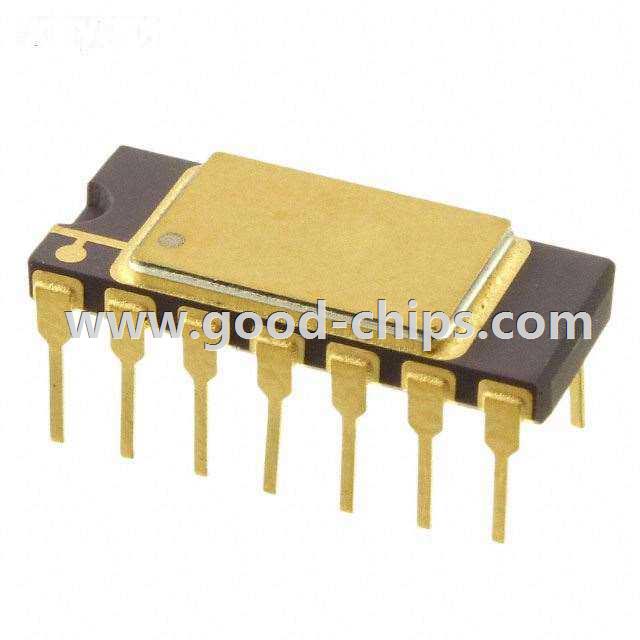

| Manufacturer Part Number: | JANTX1N6511 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9109 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 7 Independent Standard 75V 300mA (DC) Through Hole 14-CDIP (0.300", 7.62mm) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX1N6511 Datasheet |
| Internal Part Number | 898-JANTX1N6511 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | Diode Array | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/4 | |
| Packaging | Tube | |
| Part Status | Quote Required | |
| Diode Configuration | 7 Independent | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 75V | |
| Current - Average Rectified (Io) (per Diode) | 300mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 10ns | |
| Current - Reverse Leakage @ Vr | 100nA @ 40V | |
| Mounting Type | Through Hole | |
| Package / Case | 14-CDIP (0.300", 7.62mm) | |
| Supplier Device Package | 14-CDIP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX1N6511 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX1N6511 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N6511 is new and unused, you can buy JANTX1N6511 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N6511.
