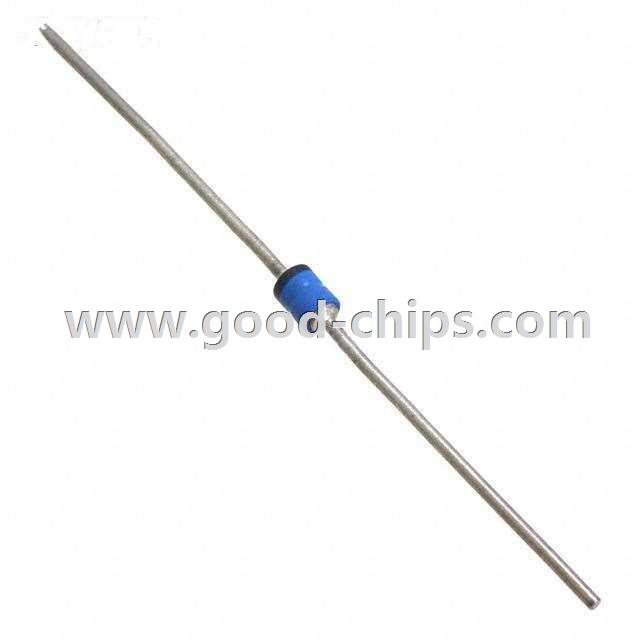

Manufacturer Part Number: | JANTX1N6461 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | TVS - Diodes |
Available Quantity: | 10823 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 5VWM 9VC EAXIAL |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JANTX1N6461 Datasheet |
Internal Part Number | 898-JANTX1N6461 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | High-Reliability Semiconductors | |
Online Catalog | Military, MIL-PRF-19500, 1N6xxx Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Microsemi IRE Division | |
Series | Military, MIL-PRF-19500/551 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 5V | |
Voltage - Breakdown (Min) | 5.6V | |
Voltage - Clamping (Max) @ Ipp | 9V | |
Current - Peak Pulse (10/1000µs) | 315A (8/20µs) | |
Power - Peak Pulse | 500W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | B, Axial | |
Supplier Device Package | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JANTX1N6461 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JANTX1N6461 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N6461 is new and unused, you can buy JANTX1N6461 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N6461.
