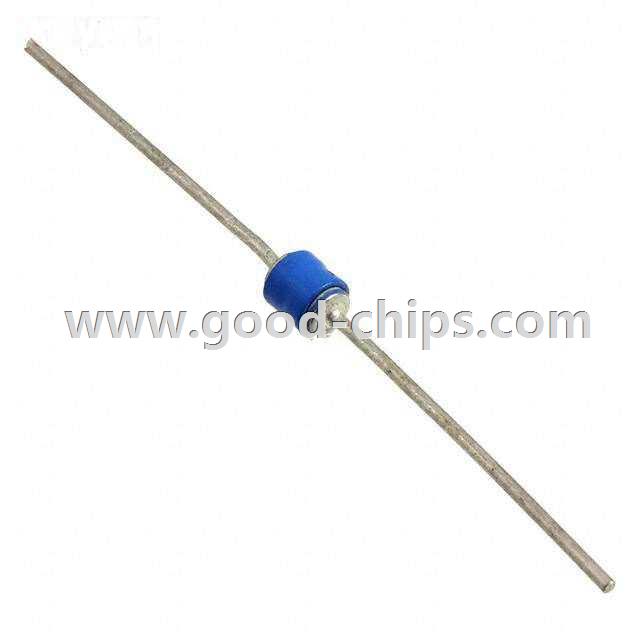

| Manufacturer Part Number: | JANTX1N6146A |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 11.4VWM 21VC CPKG AXL |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX1N6146A Datasheet |
| Internal Part Number | 898-JANTX1N6146A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | Military, MIL-PRF-19500, 1Nxxx Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/516 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 11.4V | |
| Voltage - Breakdown (Min) | 14.25V | |
| Voltage - Clamping (Max) @ Ipp | 21V | |
| Current - Peak Pulse (10/1000µs) | 71.4A | |
| Power - Peak Pulse | 1500W (1.5kW) | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | G, Axial | |
| Supplier Device Package | C, Axial | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX1N6146A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX1N6146A is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N6146A is new and unused, you can buy JANTX1N6146A Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N6146A.
