| Manufacturer Part Number: | JANTX1N4114D-1 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

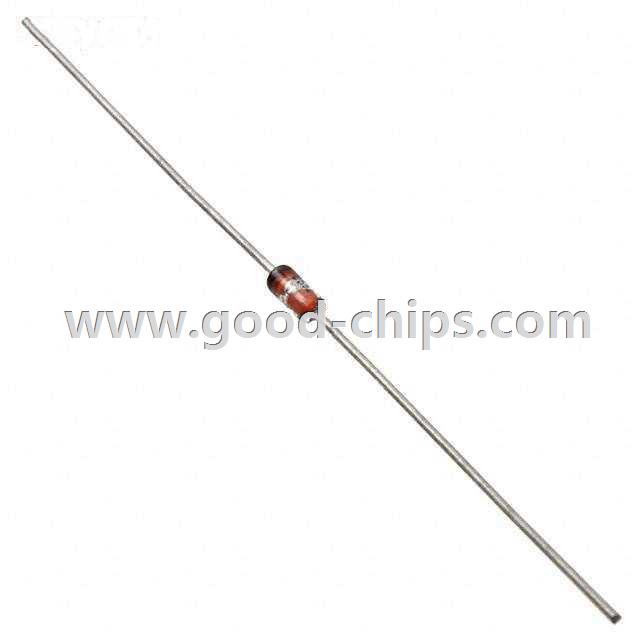

| Description: | Zener Diode 20V 500mW ±1% Through Hole DO-35 (DO-204AH) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX1N4114D-1 Datasheet |
| Internal Part Number | 898-JANTX1N4114D-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/435 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 20V | |
| Tolerance | ±1% | |
| Power - Max | 500mW | |
| Impedance (Max) (Zzt) | 150 Ohm | |
| Current - Reverse Leakage @ Vr | 10nA @ 15.2V | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 200mA | |
| Operating Temperature | -65°C ~ 175°C | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AH, DO-35, Axial | |
| Supplier Device Package | DO-35 (DO-204AH) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX1N4114D-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX1N4114D-1 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N4114D-1 is new and unused, you can buy JANTX1N4114D-1 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N4114D-1.
