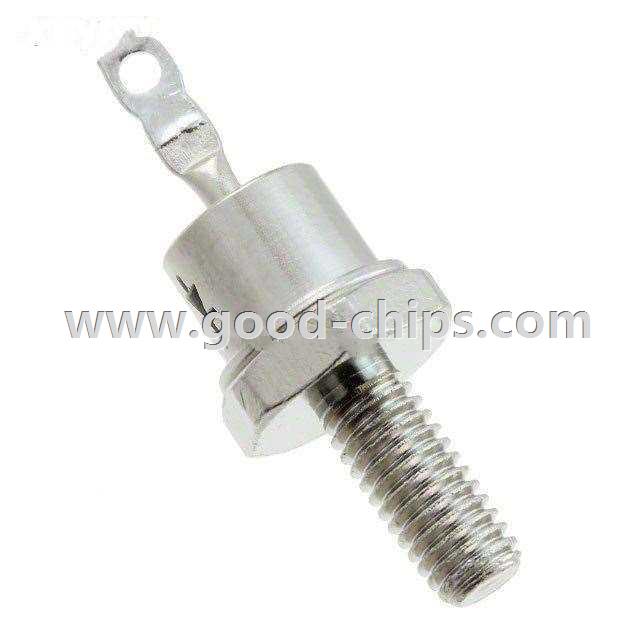

| Manufacturer Part Number: | JANTX1N3671A |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9060 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 800V 12A DO203AA |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX1N3671A Datasheet |
| Internal Part Number | 898-JANTX1N3671A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/260 | |
| Packaging | Bulk | |
| Part Status | Quote Required | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 800V | |
| Current - Average Rectified (Io) | 12A | |
| Voltage - Forward (Vf) (Max) @ If | 2.3V @ 240A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 5µA @ 800V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Stud Mount | |
| Package / Case | DO-203AA, DO-4, Stud | |
| Supplier Device Package | DO-203AA | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX1N3671A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX1N3671A is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N3671A is new and unused, you can buy JANTX1N3671A Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N3671A.
