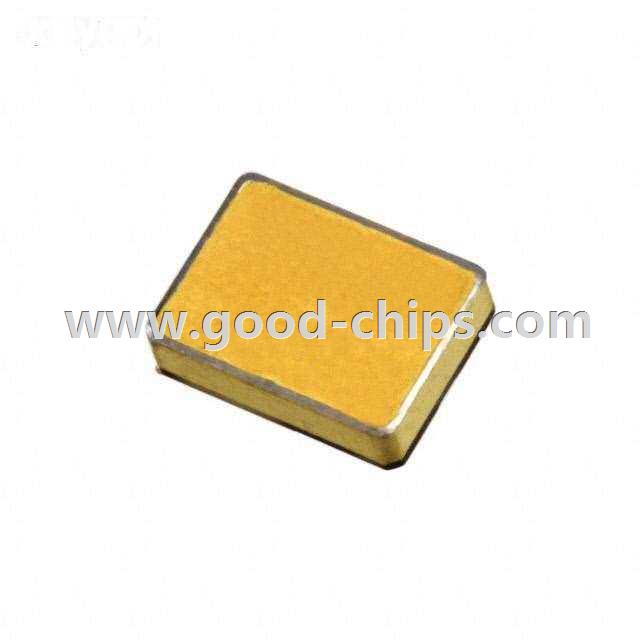

| Manufacturer Part Number: | JANS2N5339U3 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 100V 5A SMD5 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANS2N5339U3 Datasheet |
| Internal Part Number | 898-JANS2N5339U3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/560 | |
| Packaging | Bulk | |
| Part Status | Quote Required | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 5A | |
| Voltage - Collector Emitter Breakdown (Max) | 100V | |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 500mA, 5A | |
| Current - Collector Cutoff (Max) | 100µA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 2A, 2V | |
| Power - Max | 1W | |
| Frequency - Transition | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 5-SMD | |
| Supplier Device Package | SMD5 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANS2N5339U3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANS2N5339U3 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANS2N5339U3 is new and unused, you can buy JANS2N5339U3 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANS2N5339U3.
