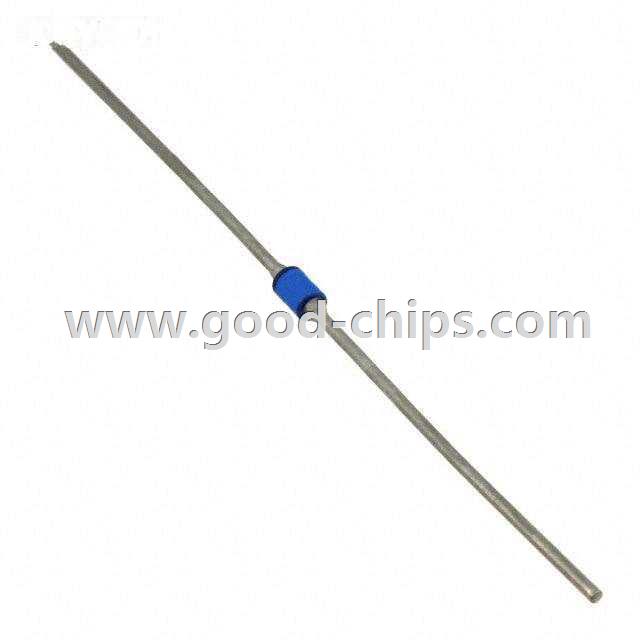

Manufacturer Part Number: | JAN1N4942 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE GEN PURP 200V 1A AXIAL |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JAN1N4942 Datasheet |
Internal Part Number | 898-JAN1N4942 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | High-Reliability Semiconductors | |
Online Catalog | Standard Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Microsemi IRE Division | |
Series | Military, MIL-PRF-19500/359 | |
Packaging | Bulk | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 200V | |
Current - Average Rectified (Io) | 1A | |
Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 150ns | |
Current - Reverse Leakage @ Vr | 1µA @ 200V | |
Capacitance @ Vr, F | - | |
Mounting Type | Through Hole | |
Package / Case | A, Axial | |
Supplier Device Package | * | |
Operating Temperature - Junction | -65°C ~ 175°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JAN1N4942 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JAN1N4942 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JAN1N4942 is new and unused, you can buy JAN1N4942 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JAN1N4942.
