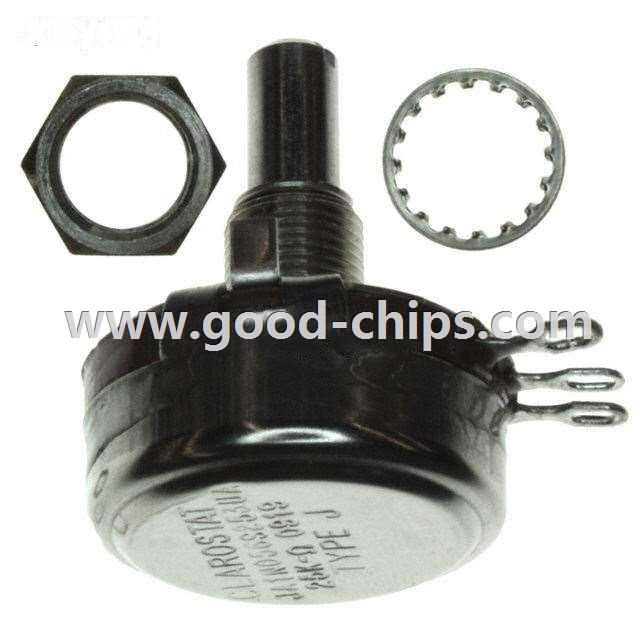

Manufacturer Part Number: | JA1N056S253UA |
---|---|
Manufacturer: | Honeywell Sensing and Productivity Solutions |
Product Category: | Rotary Potentiometers, Rheostats |
Available Quantity: | 9098 Pieces |
Unit Price: | Quote by Email |
Description: | 25k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Carbon 2.25W Solder Lug |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JA1N056S253UA Datasheet |
Internal Part Number | 898-JA1N056S253UA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Potentiometer Line | |
Online Catalog | J Series | |
Category | Potentiometers, Variable Resistors | |
Family | Rotary Potentiometers, Rheostats | |
Manufacturer | Honeywell Sensing and Productivity Solutions | |
Series | J | |
Packaging | Bulk | |
Part Status | Active | |
Taper | Linear | |
Resistance (Ohms) | 25k | |
Tolerance | ±10% | |
Number of Gangs | 1 | |
Built in Switch | None | |
Power (Watts) | 2.25W | |
Temperature Coefficient | - | |
Number of Turns | 1 | |
Rotation | 312° | |
Adjustment Type | - | |
Resistive Material | Carbon | |
Termination Style | Solder Lug | |
Actuator Type | Slotted | |
Actuator Length | 0.875" (22.23mm) | |
Actuator Diameter | 0.250" (6.35mm) | |
Bushing Thread | 3/8-32 | |
Mounting Type | Panel Mount | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JA1N056S253UA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JA1N056S253UA is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of JA1N056S253UA is new and unused, you can buy JA1N056S253UA Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JA1N056S253UA.
