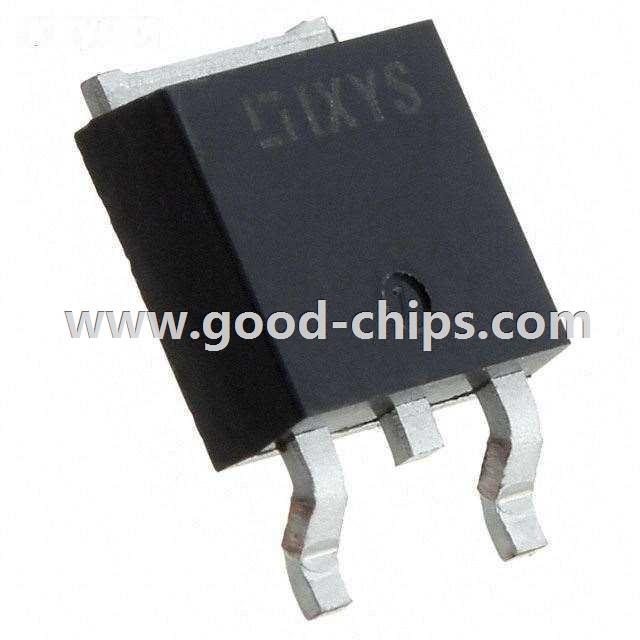

| Manufacturer Part Number: | IXYY8N90C3 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9027 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 900V 20A 125W Surface Mount TO-252 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXYY8N90C3 Datasheet |
| Internal Part Number | 898-IXYY8N90C3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | IXYS | |
| Series | GenX3™, XPT™ | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 900V | |
| Current - Collector (Ic) (Max) | 20A | |
| Current - Collector Pulsed (Icm) | 48A | |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 8A | |
| Power - Max | 125W | |
| Switching Energy | 460µJ (on), 180µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 13.3nC | |
| Td (on/off) @ 25°C | 16ns/40ns | |
| Test Condition | 450V, 8A, 30 Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | TO-252 | |
| Standard Package | 70 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXYY8N90C3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXYY8N90C3 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXYY8N90C3 is new and unused, you can buy IXYY8N90C3 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXYY8N90C3.
