| Manufacturer Part Number: | IXYH75N65C3H1 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9066 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT PT 650V 170A 750W Through Hole TO-247 (IXYH) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXYH75N65C3H1 Datasheet |
| Internal Part Number | 898-IXYH75N65C3H1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | IXYS | |
| Series | GenX3™, XPT™ | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | PT | |
| Voltage - Collector Emitter Breakdown (Max) | 650V | |
| Current - Collector (Ic) (Max) | 170A | |
| Current - Collector Pulsed (Icm) | 360A | |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 60A | |
| Power - Max | 750W | |
| Switching Energy | 2.8mJ (on), 1mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 123nC | |
| Td (on/off) @ 25°C | 27ns/93ns | |
| Test Condition | 400V, 60A, 3 Ohm, 15V | |
| Reverse Recovery Time (trr) | 150ns | |

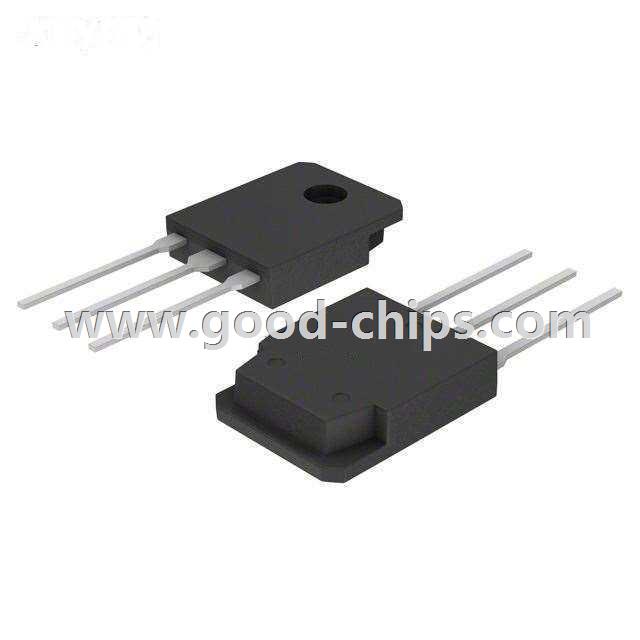

| Package / Case | TO-247-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-247 (IXYH) | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXYH75N65C3H1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXYH75N65C3H1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXYH75N65C3H1 is new and unused, you can buy IXYH75N65C3H1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXYH75N65C3H1.
