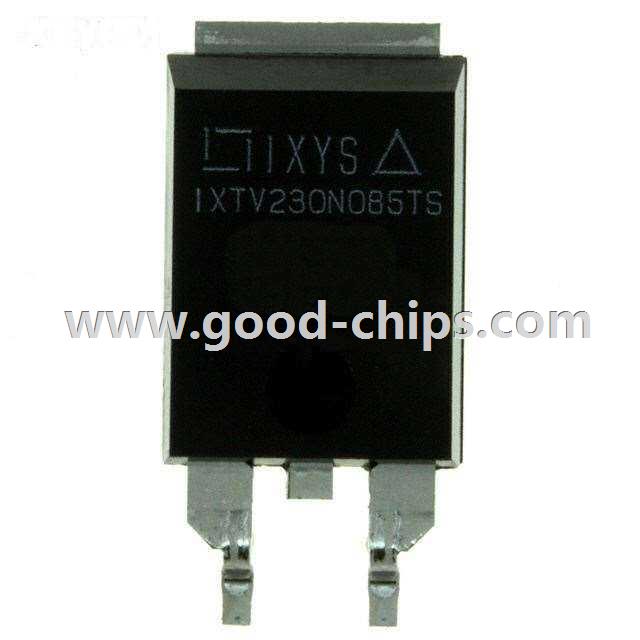

| Manufacturer Part Number: | IXTV230N085TS |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 85V 230A PLUS220SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXTV230N085TS Datasheet |
| Internal Part Number | 898-IXTV230N085TS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | IXT Series 30/Oct/2012 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | IXYS | |
| Series | TrenchMV™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 85V | |
| Current - Continuous Drain (Id) @ 25°C | 230A (Tc) | |
| Rds On (Max) @ Id, Vgs | 4.4 mOhm @ 50A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 187nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 9900pF @ 25V | |
| Power - Max | 550W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | PLUS-220SMD | |
| Supplier Device Package | PLUS-220SMD | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXTV230N085TS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXTV230N085TS is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXTV230N085TS is new and unused, you can buy IXTV230N085TS IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXTV230N085TS.
