Manufacturer Part Number: | IXTP50N20PM |
---|---|
Manufacturer: | IXYS |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 200V 20A TO-220 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IXTP50N20PM Datasheet |
Internal Part Number | 898-IXTP50N20PM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | IXYS | |
Series | PolarHT™ | |
Packaging | Tube | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 200V | |
Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | |
Rds On (Max) @ Id, Vgs | 60 mOhm @ 25A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 250µA | |
Gate Charge (Qg) @ Vgs | 70nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 2720pF @ 25V | |
Power - Max | 90W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

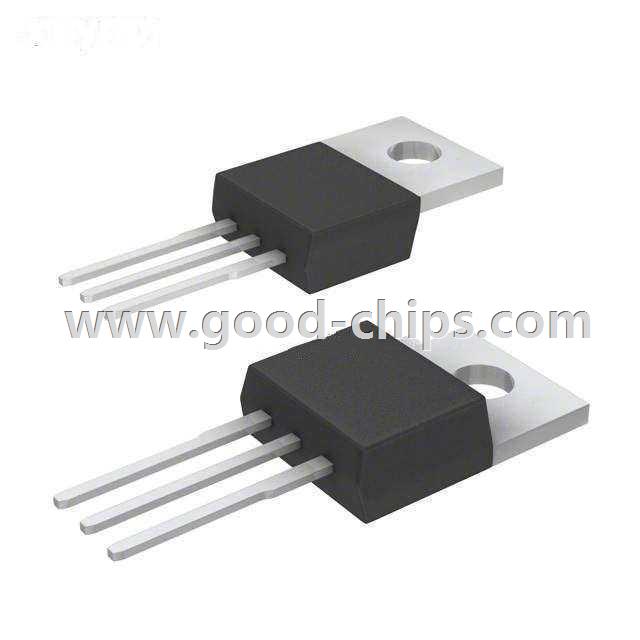

Package / Case | TO-220-3 Full Pack, Isolated Tab | |
Supplier Device Package | TO-220 Isolated Tab | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IXTP50N20PM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IXTP50N20PM is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXTP50N20PM is new and unused, you can buy IXTP50N20PM IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXTP50N20PM.
