| Manufacturer Part Number: | IXSN80N60BD1 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

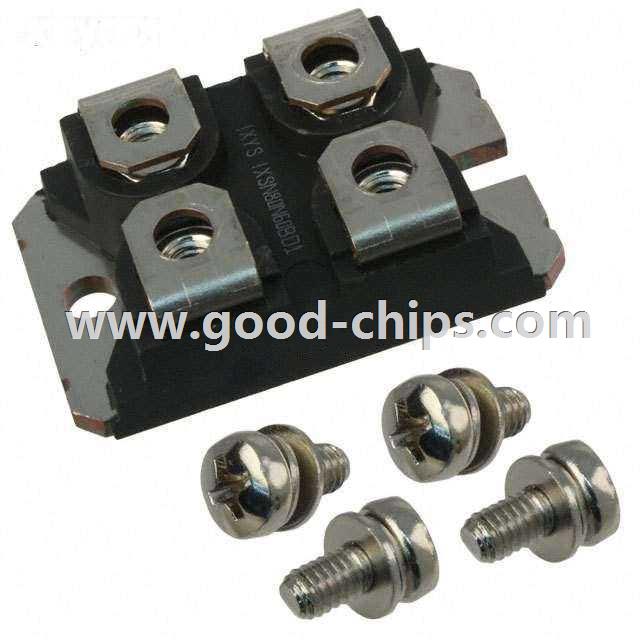

| Description: | IGBT Module Single 600V 160A 420W Chassis Mount SOT-227B |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXSN80N60BD1 Datasheet |
| Internal Part Number | 898-IXSN80N60BD1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | IGBT's S Class Type 23/Apr/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | IXYS | |
| Series | - | |
| Part Status | Obsolete | |
| IGBT Type | - | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 160A | |
| Power - Max | 420W | |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 80A | |
| Current - Collector Cutoff (Max) | 200µA | |
| Input Capacitance (Cies) @ Vce | 6.6nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | SOT-227-4, miniBLOC | |
| Supplier Device Package | SOT-227B | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXSN80N60BD1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXSN80N60BD1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXSN80N60BD1 is new and unused, you can buy IXSN80N60BD1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXSN80N60BD1.
