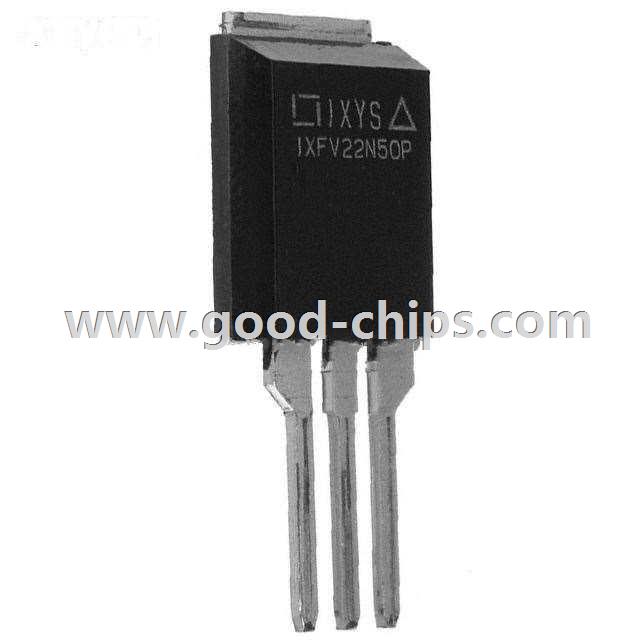

| Manufacturer Part Number: | IXFV22N50P |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 500V 22A PLUS220 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXFV22N50P Datasheet |
| Internal Part Number | 898-IXFV22N50P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 16/Dec/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | IXYS | |
| Series | HiPerFET™, PolarHT™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) | |
| Rds On (Max) @ Id, Vgs | 270 mOhm @ 11A, 10V | |
| Vgs(th) (Max) @ Id | 5.5V @ 2.5mA | |
| Gate Charge (Qg) @ Vgs | 50nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2630pF @ 25V | |
| Power - Max | 350W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3, Short Tab | |
| Supplier Device Package | PLUS220 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXFV22N50P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXFV22N50P is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXFV22N50P is new and unused, you can buy IXFV22N50P IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXFV22N50P.
