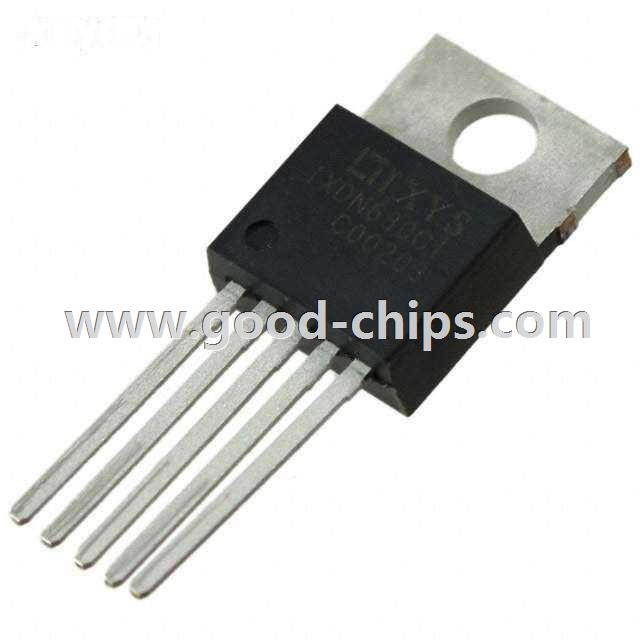

| Manufacturer Part Number: | IXDN630CI |
|---|---|
| Manufacturer: | IXYS Integrated Circuits Division |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 10213 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC GATE DRIVER LOW SIDE 5TO220 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXDN630CI Datasheet |
| Internal Part Number | 898-IXDN630CI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Low-Side | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | IXYS Integrated Circuits Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Driven Configuration | Low-Side | |
| Channel Type | Single | |
| Number of Drivers | 1 | |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | |
| Voltage - Supply | 12.5 V ~ 35 V | |
| Logic Voltage - VIL, VIH | 0.8V, 3.5V | |
| Current - Peak Output (Source, Sink) | 30A, 30A | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | - | |
| Rise / Fall Time (Typ) | 11ns, 11ns | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-5 | |
| Supplier Device Package | TO-220-5 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXDN630CI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXDN630CI is in stock for immediate shipping now. We are the distributor of IXYS Integrated Circuits Division all series components. The condition of IXDN630CI is new and unused, you can buy IXDN630CI IXYS Integrated Circuits Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXDN630CI.
