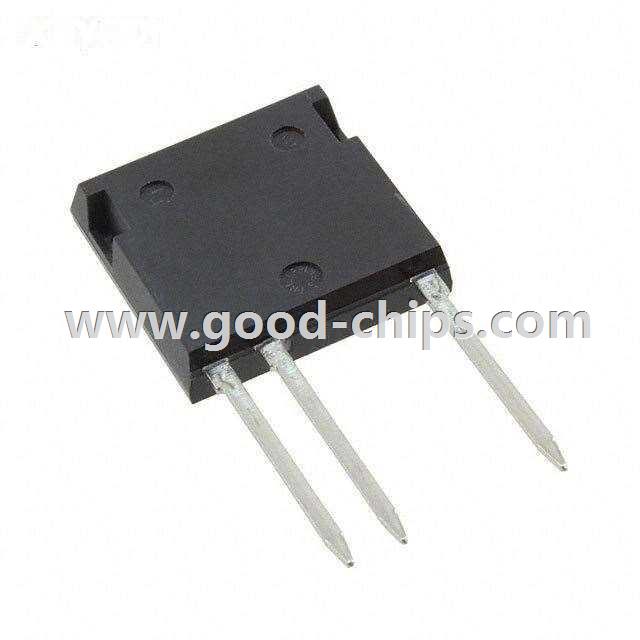

| Manufacturer Part Number: | IXBF50N360 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9047 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 3600V 70A 290W Through Hole ISOPLUS i4-PAC™ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXBF50N360 Datasheet |
| Internal Part Number | 898-IXBF50N360 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | IXYS | |
| Series | BIMOSFET™ | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 3600V | |
| Current - Collector (Ic) (Max) | 70A | |
| Current - Collector Pulsed (Icm) | 420A | |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 50A | |
| Power - Max | 290W | |
| Switching Energy | - | |
| Input Type | Standard | |
| Gate Charge | 210nC | |
| Td (on/off) @ 25°C | 46ns/205ns | |
| Test Condition | 960V, 50A, 5 Ohm, 15V | |
| Reverse Recovery Time (trr) | 1.7µs | |
| Package / Case | i4-Pac™-5 (3 leads) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | ISOPLUS i4-PAC™ | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXBF50N360 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXBF50N360 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXBF50N360 is new and unused, you can buy IXBF50N360 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXBF50N360.
