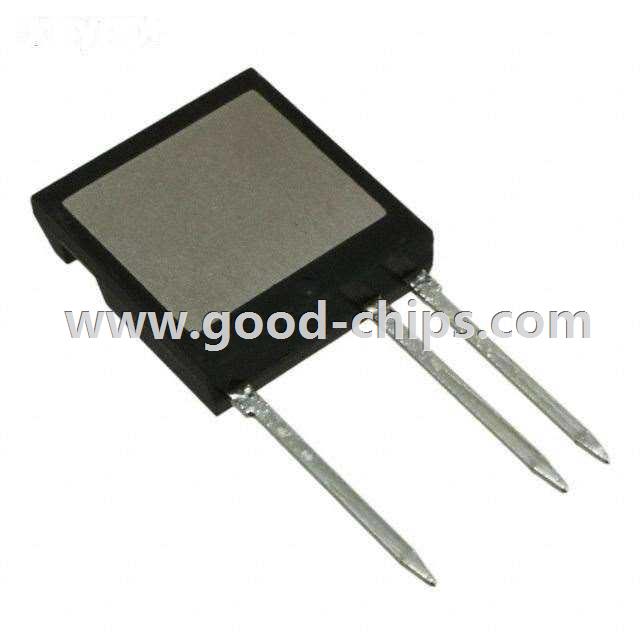

| Manufacturer Part Number: | IXBF20N300 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9032 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 3000V 34A 150W Through Hole ISOPLUS i4-PAC™ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXBF20N300 Datasheet |
| Internal Part Number | 898-IXBF20N300 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | IXYS | |
| Series | BIMOSFET™ | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 3000V | |
| Current - Collector (Ic) (Max) | 34A | |
| Current - Collector Pulsed (Icm) | 150A | |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 20A | |
| Power - Max | 150W | |
| Switching Energy | - | |
| Input Type | Standard | |
| Gate Charge | 105nC | |
| Td (on/off) @ 25°C | - | |
| Test Condition | - | |
| Reverse Recovery Time (trr) | 1.35µs | |
| Package / Case | i4-Pac™-5 (3 leads) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | ISOPLUS i4-PAC™ | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXBF20N300 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXBF20N300 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXBF20N300 is new and unused, you can buy IXBF20N300 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXBF20N300.
