| Manufacturer Part Number: | ISQ2X |
|---|---|
| Manufacturer: | Isocom Components 2004 LTD |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9785 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 3750Vrms 4 Channel 16-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISQ2X Datasheet |
| Internal Part Number | 898-ISQ2X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | IS(D,Q)x Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Isocom Components 2004 LTD | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 4 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | 100% @ 10mA | |
| Current Transfer Ratio (Max) | 500% @ 10mA | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 4µs, 3µs | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 70V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | - | |
| Operating Temperature | -25°C ~ 100°C | |
| Mounting Type | Through Hole | |

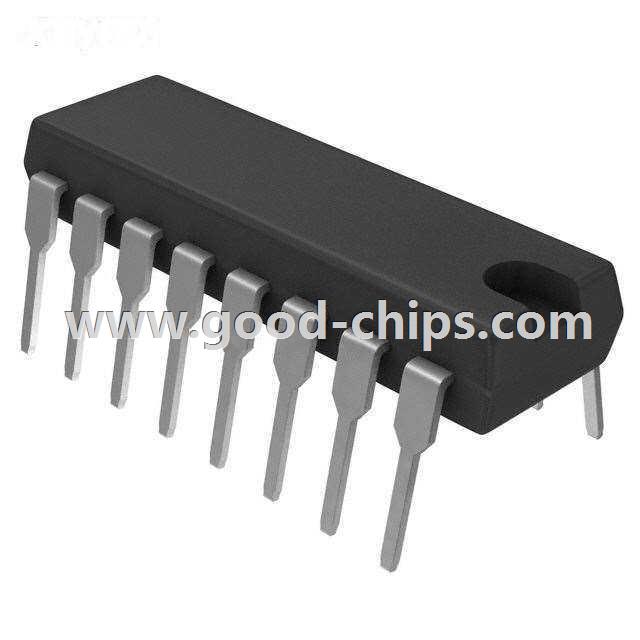

| Package / Case | 16-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 16-DIP | |
| Standard Package | 400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISQ2X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISQ2X is in stock for immediate shipping now. We are the distributor of Isocom Components 2004 LTD all series components. The condition of ISQ2X is new and unused, you can buy ISQ2X Isocom Components 2004 LTD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISQ2X.
