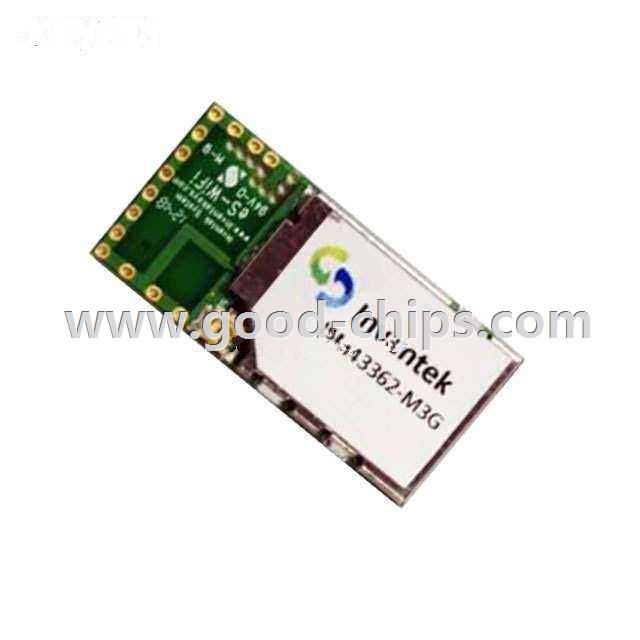

Manufacturer Part Number: | ISM43362-M3G-L44-U C2.5.0.3 |
---|---|
Manufacturer: | Inventek Systems |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9289 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE WIFI U.FL ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ISM43362-M3G-L44-U C2.5.0.3 Datasheet |
Internal Part Number | 898-ISM43362-M3G-L44-U C2.5.0.3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | ISM43362 UART Ref Schematic ISM43362-M3G-L44-E/U Pin-out Pattern Development Tool Selector IoT Product Selector | |
Featured Product | ISM43362-M3G-L44-E/U Embedded Serial-to-Wi-Fi Module | |
Online Catalog | ISM43362-M3G-L44-E or -U | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Inventek Systems | |
Series | eS-WiFi™ | |
Packaging | Tray | |
Part Status | Active | |
RF Family/Standard | WiFi | |
Protocol | 802.11b/g/n | |
Modulation | 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | |
Frequency | 2.4GHz | |
Data Rate | 72.2Mbps | |
Power - Output | 18dBm | |
Sensitivity | -93dBm | |
Serial Interfaces | UART | |
Antenna Type | Not Included, U.FL | |
Memory Size | 1MB Flash | |
Voltage - Supply | 3 V ~ 3.6 V | |
Current - Receiving | - | |
Current - Transmitting | - | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 72 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ISM43362-M3G-L44-U C2.5.0.3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ISM43362-M3G-L44-U C2.5.0.3 is in stock for immediate shipping now. We are the distributor of Inventek Systems all series components. The condition of ISM43362-M3G-L44-U C2.5.0.3 is new and unused, you can buy ISM43362-M3G-L44-U C2.5.0.3 Inventek Systems with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISM43362-M3G-L44-U C2.5.0.3.
