| Manufacturer Part Number: | ISL9V5036P3_F085 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9753 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 390V 46A 250W Through Hole TO-220-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL9V5036P3_F085 Datasheet |
| Internal Part Number | 898-ISL9V5036P3_F085 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Driving Automotive Technology | |
| Featured Product | One-Stop Automotive Shop | |
| Online Catalog | Logic Level Gate IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Automotive, AEC-Q101, EcoSPARK® | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 390V | |
| Current - Collector (Ic) (Max) | 46A | |
| Current - Collector Pulsed (Icm) | - | |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 4V, 10A | |
| Power - Max | 250W | |
| Switching Energy | - | |
| Input Type | Logic | |
| Gate Charge | 32nC | |
| Td (on/off) @ 25°C | -/10.8µs | |
| Test Condition | 300V, 1 kOhm, 5V | |
| Reverse Recovery Time (trr) | - | |

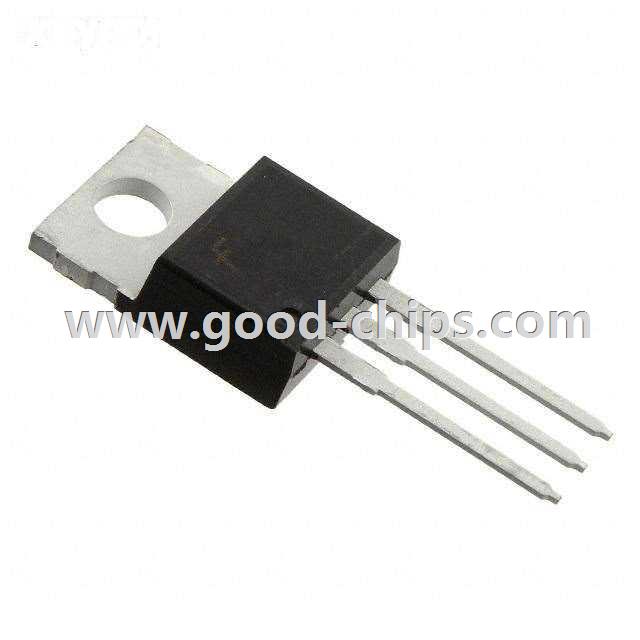

| Package / Case | TO-220-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-220-3 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL9V5036P3_F085 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL9V5036P3_F085 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of ISL9V5036P3_F085 is new and unused, you can buy ISL9V5036P3_F085 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL9V5036P3_F085.
