| Manufacturer Part Number: | ISL97901CRZ-TK |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 4 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) I²C Dimming 375mA 28-QFN (4x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL97901CRZ-TK Datasheet |
| Internal Part Number | 898-ISL97901CRZ-TK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Assembly/Origin | DFN/QFN Alternate Manufacturing Site 25/Oct/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 4 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 5.5V | |
| Current - Output / Channel | 375mA | |
| Frequency | 2.5MHz | |
| Dimming | I²C | |
| Applications | - | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 28-VFQFN Exposed Pad | |

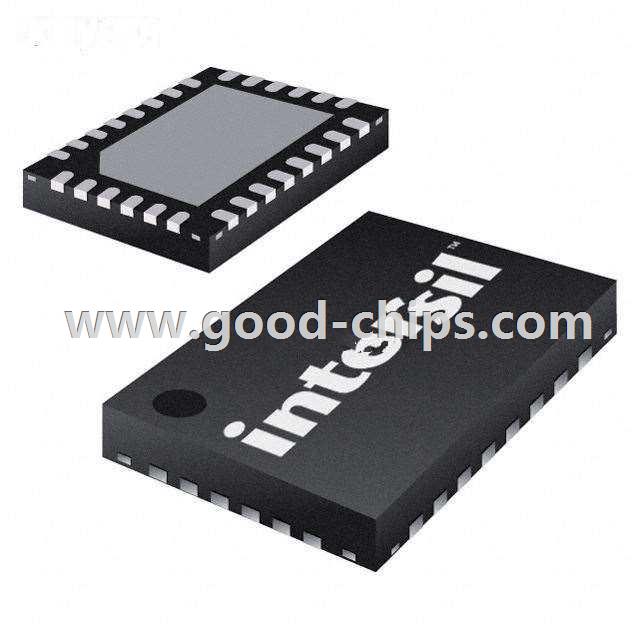

| Supplier Device Package | 28-QFN (4x5) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL97901CRZ-TK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL97901CRZ-TK is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL97901CRZ-TK is new and unused, you can buy ISL97901CRZ-TK Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL97901CRZ-TK.
