| Manufacturer Part Number: | ISL97522IRZ-TK |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Power Management - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LCD TV/Monitor PMIC 38-QFN (5x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL97522IRZ-TK Datasheet |
| Internal Part Number | 898-ISL97522IRZ-TK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Bond Wire Material 13/Mar/2013 DFN/QFN Copper Wire Bond Wire 25/Oct/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Management - Specialized | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Applications | LCD TV/Monitor | |
| Current - Supply | 3mA | |
| Voltage - Supply | 4.5 V ~ 13.2 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

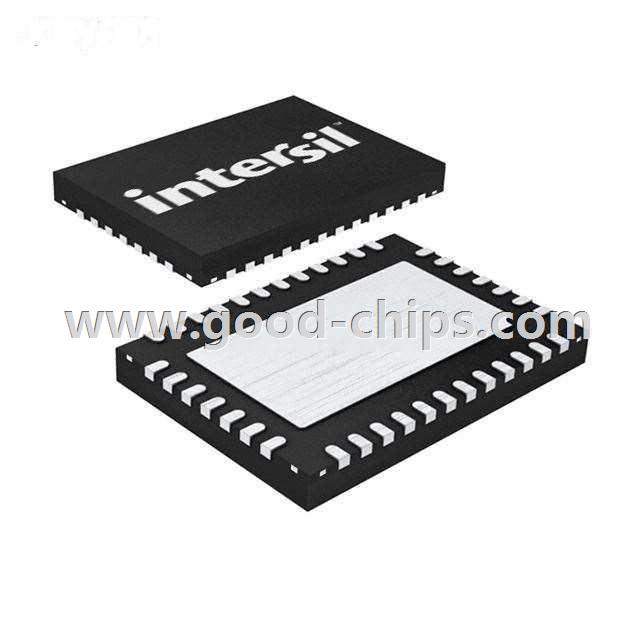

| Package / Case | 38-VFQFN Exposed Pad | |
| Supplier Device Package | 38-QFN (5x7) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL97522IRZ-TK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL97522IRZ-TK is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL97522IRZ-TK is new and unused, you can buy ISL97522IRZ-TK Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL97522IRZ-TK.
