| Manufacturer Part Number: | ISL9220AIRTZ-T7A |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Battery Chargers |
| Available Quantity: | 9260 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BATT CHRGR LIION 2CELL 20TQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL9220AIRTZ-T7A Datasheet |
| Internal Part Number | 898-ISL9220AIRTZ-T7A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | DFN/QFN Copper Wire Bond Wire 25/Oct/2013 | |
| Online Catalog | Battery Chargers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Battery Chargers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Battery Chemistry | Lithium-Ion/Polymer | |
| Number of Cells | 2 | |
| Current - Charging | Constant - Programmable | |
| Programmable Features | Timer | |
| Fault Protection | Over Temperature, Short Crcuit | |
| Charge Current - Max | 2A | |
| Battery Pack Voltage | 8.4V | |
| Voltage - Supply (Max) | 14V | |
| Interface | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

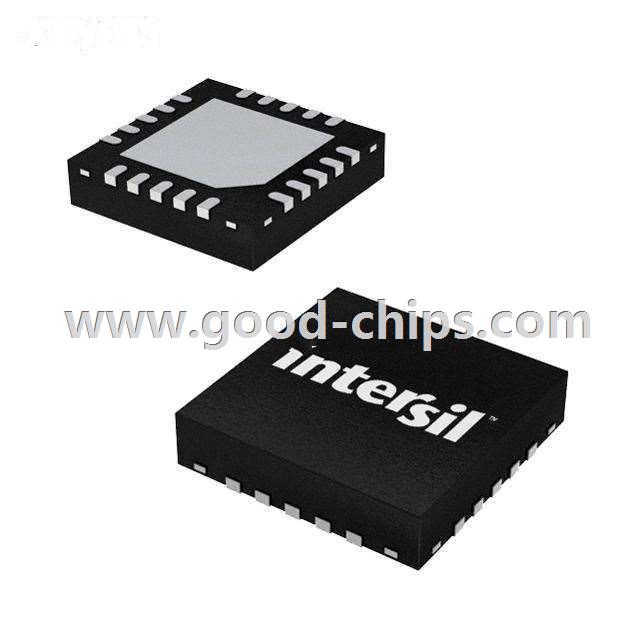

| Package / Case | 20-WFQFN Exposed Pad | |
| Supplier Device Package | 20-TQFN (4x4) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL9220AIRTZ-T7A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL9220AIRTZ-T7A is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL9220AIRTZ-T7A is new and unused, you can buy ISL9220AIRTZ-T7A Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL9220AIRTZ-T7A.
