Manufacturer Part Number: | ISL9112IRT7Z-T7A |
---|---|
Manufacturer: | Intersil |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck-Boost Switching Regulator IC Positive Fixed 5V 1 Output 1.2A 12-WFDFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ISL9112IRT7Z-T7A Datasheet |
Internal Part Number | 898-ISL9112IRT7Z-T7A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | DFN/QFN Copper Wire Bond Wire 25/Oct/2013 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Intersil | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Discontinued | |
Function | Step-Up/Step-Down | |
Output Configuration | Positive | |
Topology | Buck-Boost | |
Output Type | Fixed | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 1.8V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output (Min/Fixed) | 5V | |
Voltage - Output (Max) | - | |
Current - Output | 1.2A | |
Frequency - Switching | 2.5MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

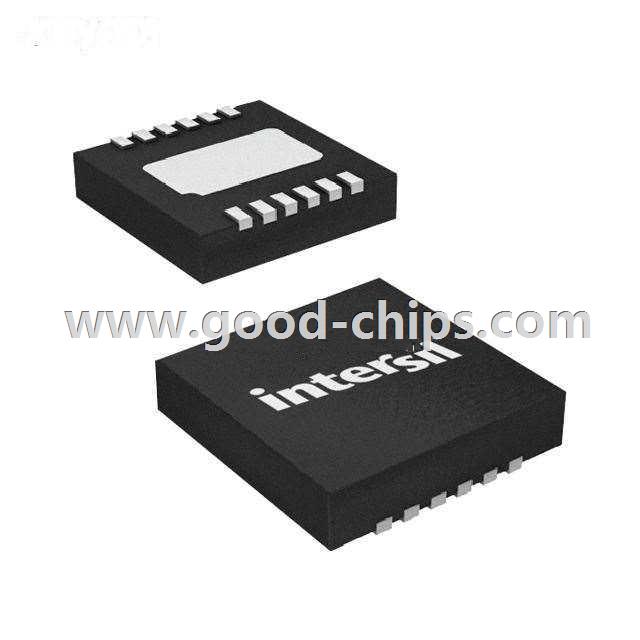

Package / Case | 12-WFDFN Exposed Pad | |
Supplier Device Package | 12-TDFN (3x3) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ISL9112IRT7Z-T7A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ISL9112IRT7Z-T7A is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL9112IRT7Z-T7A is new and unused, you can buy ISL9112IRT7Z-T7A Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL9112IRT7Z-T7A.
