| Manufacturer Part Number: | ISL89367FRTAZ |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9623 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOSFET DRIVER 2CH 6A 16TDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL89367FRTAZ Datasheet |
| Internal Part Number | 898-ISL89367FRTAZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 10/Jun/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Driven Configuration | Low-Side | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | N-Channel MOSFET | |
| Voltage - Supply | 4.5 V ~ 16 V | |
| Logic Voltage - VIL, VIH | - | |
| Current - Peak Output (Source, Sink) | 6A, 6A | |
| Input Type | Inverting, Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | - | |
| Rise / Fall Time (Typ) | 20ns, 20ns | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

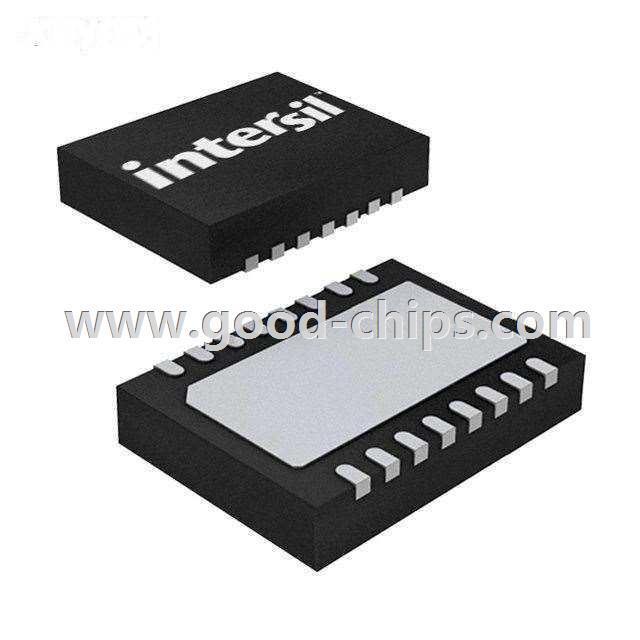

| Package / Case | 16-WFDFN Exposed Pad | |
| Supplier Device Package | 16-TDFN (5x3) | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL89367FRTAZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL89367FRTAZ is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL89367FRTAZ is new and unused, you can buy ISL89367FRTAZ Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL89367FRTAZ.
