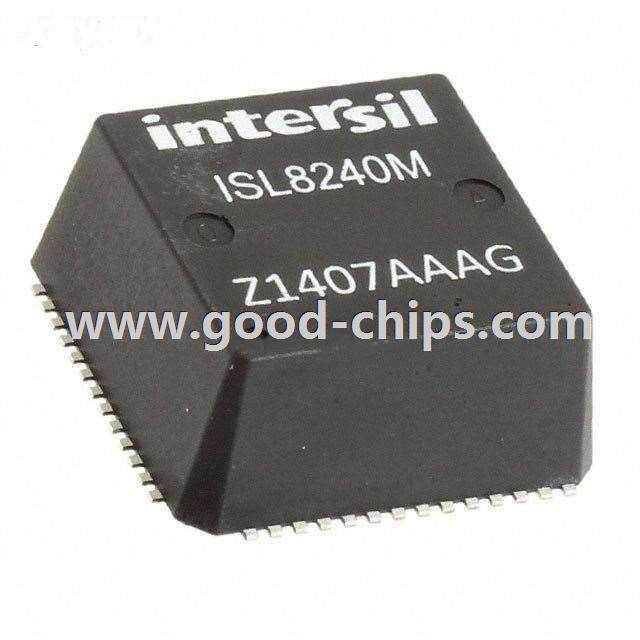

| Manufacturer Part Number: | ISL8240MIRZ-T |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 2X 0.6-2.5V 100W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL8240MIRZ-T Datasheet |
| Internal Part Number | 898-ISL8240MIRZ-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Discrete Power Design vs. Modules ISL8203M Analog Power Module ISL8240MDual 20 A + 20 A Single 40 A Step-Down Power Module | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 20V | |
| Voltage - Output 1 | 0.6 ~ 2.5 V | |
| Voltage - Output 2 | 0.6 ~ 2.5 V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 20A, 20A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | OCP, OTP, OVP | |
| Mounting Type | Surface Mount | |
| Package / Case | 26-QFN | |
| Size / Dimension | 0.70" L x 0.70" W x 0.30" H (17.8mm x 17.8mm x 7.5mm) | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | 94% | |
| Power (Watts) - Max | - | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL8240MIRZ-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL8240MIRZ-T is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL8240MIRZ-T is new and unused, you can buy ISL8240MIRZ-T Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL8240MIRZ-T.
