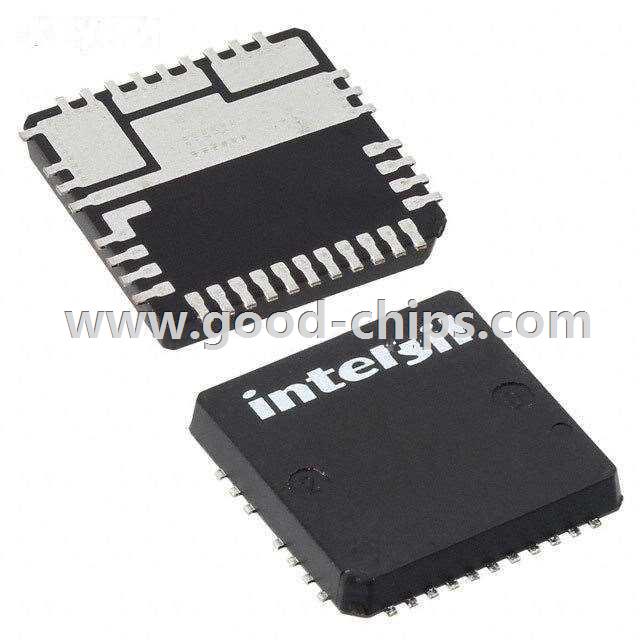

| Manufacturer Part Number: | ISL8200AMIRZ |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERT 0.6-6V 10A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL8200AMIRZ Datasheet |
| Internal Part Number | 898-ISL8200AMIRZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Discrete Power Design vs. Modules ISL8203M Analog Power Module | |
| PCN Design/Specification | ISL8200AMIRZ(-T) Datasheet Update 07/Mar/2013 Mold Compound Update 26/Nov/2014 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 20V | |
| Voltage - Output 1 | 0.6 ~ 6 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 10A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 23-QFN | |
| Size / Dimension | 0.59" L x 0.59" W x 0.09" H (15.0mm x 15.0mm x 2.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | - | |
| Power (Watts) - Max | - | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL8200AMIRZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL8200AMIRZ is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL8200AMIRZ is new and unused, you can buy ISL8200AMIRZ Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL8200AMIRZ.
