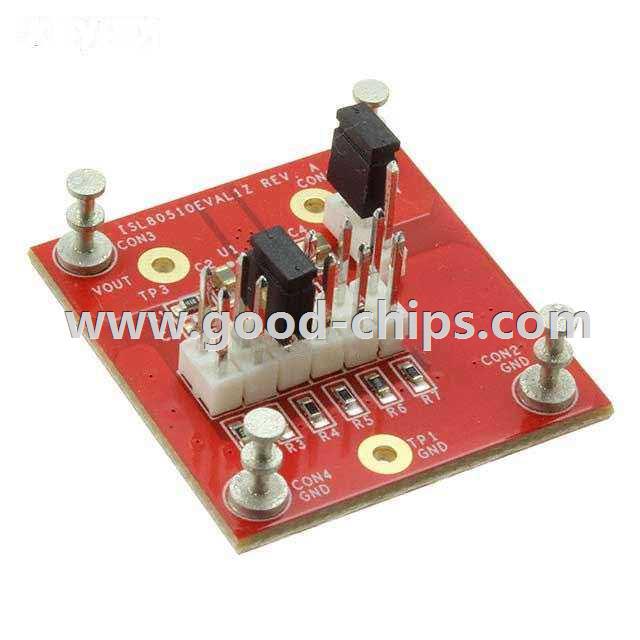

| Manufacturer Part Number: | ISL80510EVAL1Z |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - Linear Voltage Regulators |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | ISL80510 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL80510EVAL1Z Datasheet |
| Internal Part Number | 898-ISL80510EVAL1Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | ISL80510EVAL1Z Design Files | |
| Featured Product | ISL80505/10 High-Performance LDOs | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Linear Voltage Regulators | |
| Manufacturer | Intersil | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Voltage - Output | 0.8 V ~ 5.5 V | |
| Current - Output | 1A | |
| Voltage - Input | 2.2 V ~ 6 V | |
| Regulator Type | Positive Adjustable | |
| Operating Temperature | -40°C ~ 125°C | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | ISL80510 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL80510EVAL1Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL80510EVAL1Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL80510EVAL1Z is new and unused, you can buy ISL80510EVAL1Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL80510EVAL1Z.
