| Manufacturer Part Number: | ISL80505IRAJZ-T7A |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 5.5 V 500mA 8-DFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL80505IRAJZ-T7A Datasheet |
| Internal Part Number | 898-ISL80505IRAJZ-T7A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | ISL80505/10 High-Performance LDOs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Adjustable | |
| Voltage - Output | 0.8 V ~ 5.5 V | |
| Current - Output | 500mA | |
| Voltage - Dropout (Typical) | 0.045V @ 500mA | |
| Number of Regulators | 1 | |
| Voltage - Input | 1.8 V ~ 6 V | |
| Current - Limit (Min) | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

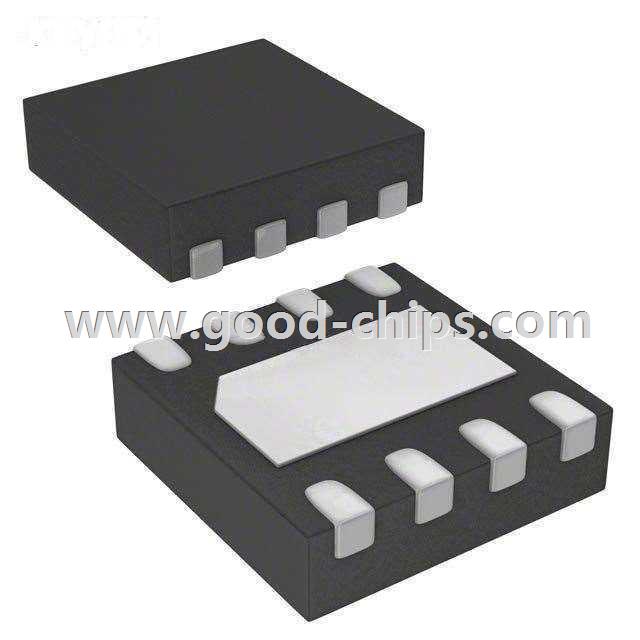

| Package / Case | 8-VDFN Exposed Pad | |
| Supplier Device Package | 8-DFN (3x3) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL80505IRAJZ-T7A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL80505IRAJZ-T7A is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL80505IRAJZ-T7A is new and unused, you can buy ISL80505IRAJZ-T7A Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL80505IRAJZ-T7A.
