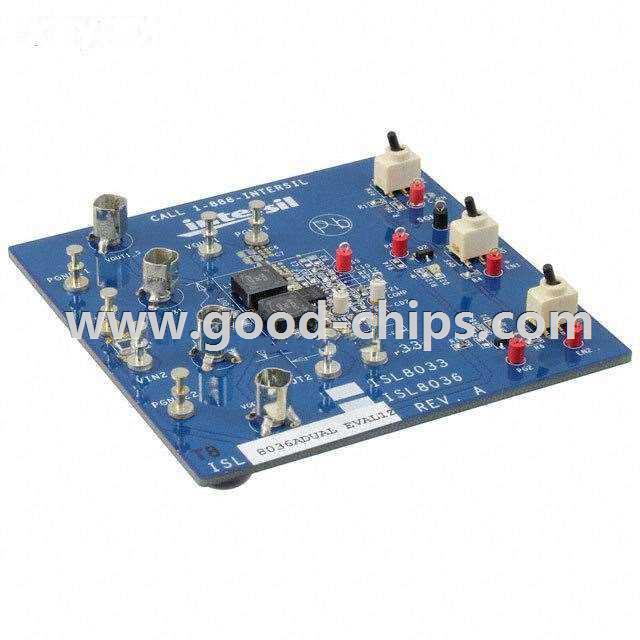

| Manufacturer Part Number: | ISL8036ADUALEVAL1Z |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | ISL8036A - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL8036ADUALEVAL1Z Datasheet |
| Internal Part Number | 898-ISL8036ADUALEVAL1Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switching Regulators | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ISL8036A Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Intersil | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 2, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 1.8V, 1.8V | |
| Current - Output | 3A, 3A | |
| Voltage - Input | 2.85 V ~ 6 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | ISL8036A | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL8036ADUALEVAL1Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL8036ADUALEVAL1Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL8036ADUALEVAL1Z is new and unused, you can buy ISL8036ADUALEVAL1Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL8036ADUALEVAL1Z.
