| Manufacturer Part Number: | ISL80138IVEAJZ |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Adjustable 1 Output 2.5 V ~ 12 V 150mA 14-HTSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL80138IVEAJZ Datasheet |
| Internal Part Number | 898-ISL80138IVEAJZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Data Sheet Chg 15/Jan/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Regulator Topology | Positive Adjustable | |
| Voltage - Output | 2.5 V ~ 12 V | |
| Current - Output | 150mA | |
| Voltage - Dropout (Typical) | 0.295V @ 150mA | |
| Number of Regulators | 1 | |
| Voltage - Input | 6 V ~ 40 V | |
| Current - Limit (Min) | 175mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

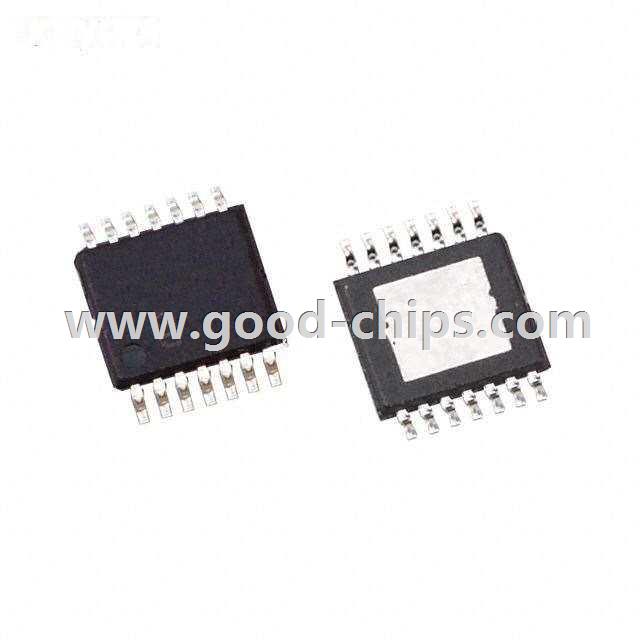

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 14-HTSSOP | |
| Standard Package | 960 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL80138IVEAJZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL80138IVEAJZ is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL80138IVEAJZ is new and unused, you can buy ISL80138IVEAJZ Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL80138IVEAJZ.
