| Manufacturer Part Number: | ISL78229ARZ-T7A |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9252 Pieces |
| Unit Price: | Quote by Email |
| Description: | Boost Regulator Positive Output Step-Up I²C, PMBus DC-DC Controller IC 40-QFN (6x6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL78229ARZ-T7A Datasheet |
| Internal Part Number | 898-ISL78229ARZ-T7A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | ISL78227/9 Boost Controllers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Intersil | |
| Series | Automotive, AEC-Q100 | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Up | |
| Output Configuration | Positive | |
| Topology | Boost | |
| Number of Outputs | 2 | |
| Output Phases | 2 | |
| Voltage - Supply (Vcc/Vdd) | 5 V ~ 55 V | |
| Frequency - Switching | 50kHz ~ 1.1MHz | |
| Duty Cycle (Max) | 89% | |
| Synchronous Rectifier | Yes | |
| Clock Sync | Yes | |
| Serial Interfaces | I²C, PMBus | |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

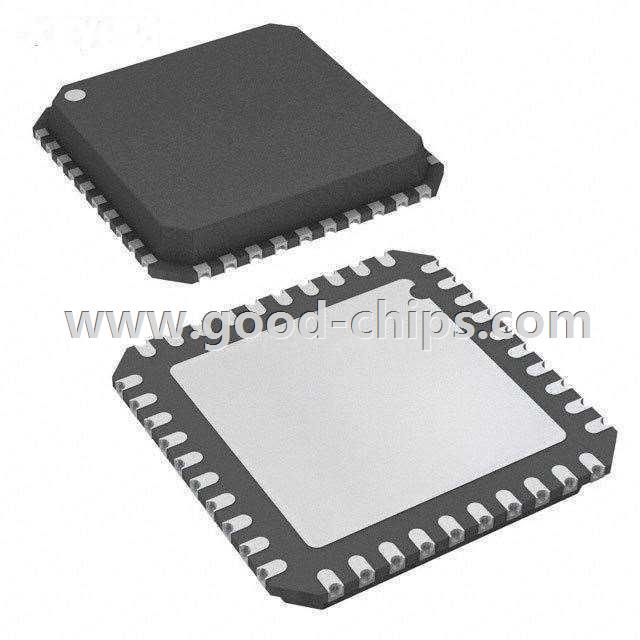

| Package / Case | 40-VFQFN Exposed Pad | |
| Supplier Device Package | 40-QFN (6x6) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL78229ARZ-T7A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL78229ARZ-T7A is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL78229ARZ-T7A is new and unused, you can buy ISL78229ARZ-T7A Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL78229ARZ-T7A.
