Manufacturer Part Number: | ISL78227ARZ-T7A |
---|---|
Manufacturer: | Intersil |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Boost Regulator Positive Output Step-Up DC-DC Controller IC 32-QFN (5x5) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ISL78227ARZ-T7A Datasheet |
Internal Part Number | 898-ISL78227ARZ-T7A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | ISL78227/9 Boost Controllers | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
Manufacturer | Intersil | |
Series | Automotive, AEC-Q100 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Output Type | Transistor Driver | |
Function | Step-Up | |
Output Configuration | Positive | |
Topology | Boost | |
Number of Outputs | 2 | |
Output Phases | 2 | |
Voltage - Supply (Vcc/Vdd) | 5 V ~ 55 V | |
Frequency - Switching | 50kHz ~ 1.1MHz | |
Duty Cycle (Max) | 89% | |
Synchronous Rectifier | Yes | |
Clock Sync | Yes | |
Serial Interfaces | - | |
Control Features | Dead Time Control, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking | |
Operating Temperature | -40°C ~ 125°C (TJ) | |

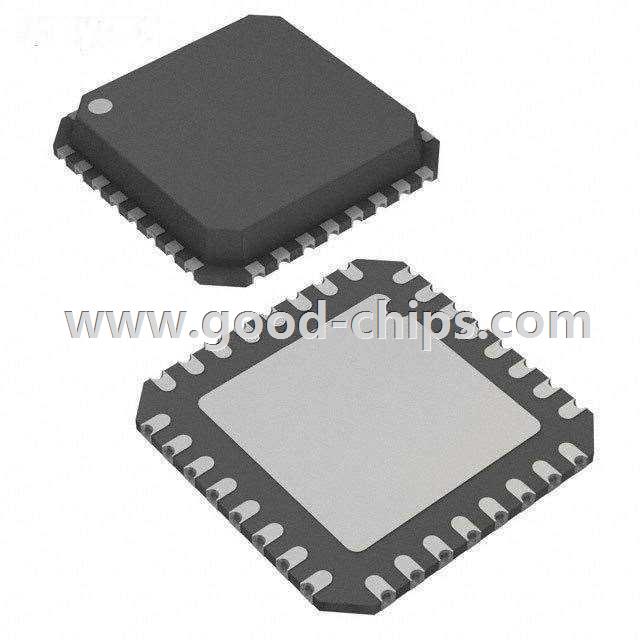

Package / Case | 32-VFQFN Exposed Pad | |
Supplier Device Package | 32-QFN (5x5) | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ISL78227ARZ-T7A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ISL78227ARZ-T7A is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL78227ARZ-T7A is new and unused, you can buy ISL78227ARZ-T7A Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL78227ARZ-T7A.
