| Manufacturer Part Number: | ISL6700IR |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DRIVER HALF BRIDGE DUAL 12QFN |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL6700IR Datasheet |
| Internal Part Number | 898-ISL6700IR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | N-Channel MOSFET | |
| Voltage - Supply | 9 V ~ 15 V | |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | 80V | |
| Rise / Fall Time (Typ) | 5ns, 5ns | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

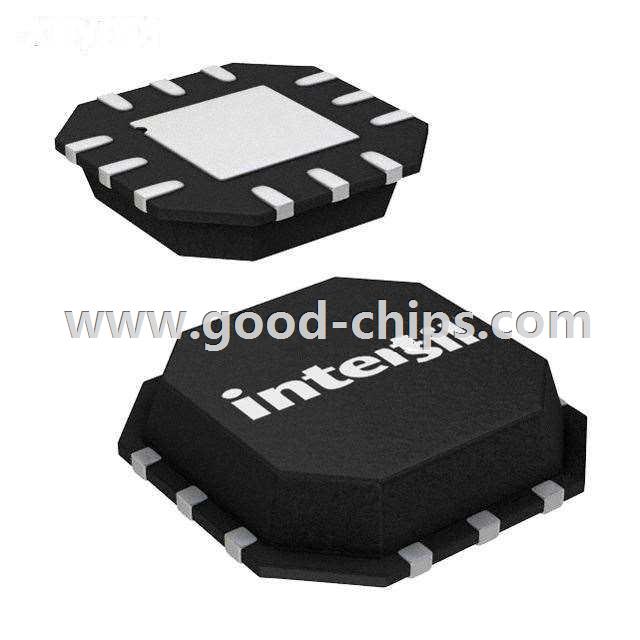

| Package / Case | 12-VQFN Exposed Pad | |
| Supplier Device Package | 12-QFN (4x4) | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL6700IR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL6700IR is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL6700IR is new and unused, you can buy ISL6700IR Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL6700IR.
