| Manufacturer Part Number: | ISL65426HRZ-T |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 1V 2 Output 6A 50-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL65426HRZ-T Datasheet |
| Internal Part Number | 898-ISL65426HRZ-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Application: Industrial Controls | |
| PCN Other | Bond Wire and Assembly Facilities 21/Nov/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 1V | |
| Voltage - Output (Max) | 4V | |
| Current - Output | 6A | |
| Frequency - Switching | 1MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -10°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

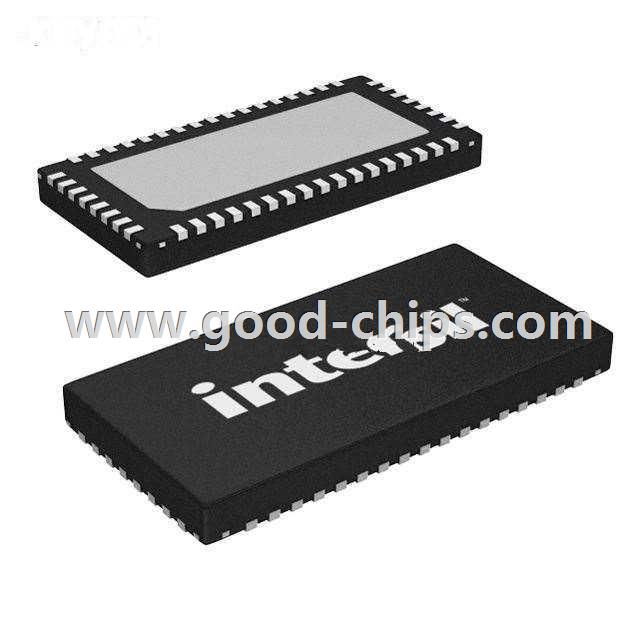

| Package / Case | 50-VFQFN Exposed Pad | |
| Supplier Device Package | 50-QFN (5x10) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL65426HRZ-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL65426HRZ-T is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL65426HRZ-T is new and unused, you can buy ISL65426HRZ-T Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL65426HRZ-T.
