| Manufacturer Part Number: | ISL6112INZA |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Hot Swap Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Hot Plug Controller 6 Channel PCI Express® 48-TQFP (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL6112INZA Datasheet |
| Internal Part Number | 898-ISL6112INZA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Hot Swap Controllers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Hot Plug Controller | |
| Number of Channels | 6 | |
| Internal Switch(s) | Both | |
| Applications | PCI Express® | |
| Features | Thermal Limit, UVLO | |
| Programmable Features | Current Limit, Fault Timeout | |
| Voltage - Supply | 3.3V, 12V | |
| Current - Output (Max) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply | 900µA | |
| Mounting Type | Surface Mount | |

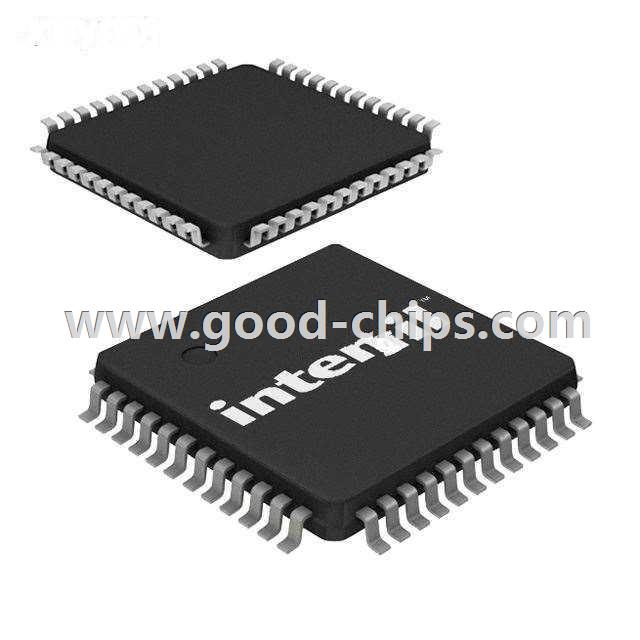

| Package / Case | 48-TQFP | |
| Supplier Device Package | 48-TQFP (7x7) | |
| Feature Pins | AUXENA, AUXENB, CFILTERA, CFILTERB, ONA, ONB, /PWRGDA, /PWRGDB, FAULTA, FAULTB, /FORCE_ONA, /FORCE_ONB | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL6112INZA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL6112INZA is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL6112INZA is new and unused, you can buy ISL6112INZA Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL6112INZA.
