Manufacturer Part Number: | ISL54225IRTZ |
---|---|
Manufacturer: | Intersil |
Product Category: | Interface - Analog Switches - Special Purpose |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC MULTIPLEXER DUAL 2:1 10TDFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ISL54225IRTZ Datasheet |
Internal Part Number | 898-ISL54225IRTZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Interface - Analog Switches - Special Purpose | |
Manufacturer | Intersil | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Applications | USB | |
Multiplexer/Demultiplexer Circuit | 2:1 | |
Switch Circuit | SPDT | |
Number of Channels | 2 | |
On-State Resistance (Max) | 20 Ohm | |
Voltage - Supply, Single (V+) | 2.7 V ~ 5.25 V | |
Voltage - Supply, Dual (V±) | - | |
-3db Bandwidth | 780MHz | |
Features | Break-Before-Make, USB 2.0 | |
Operating Temperature | -40°C ~ 85°C (TA) | |

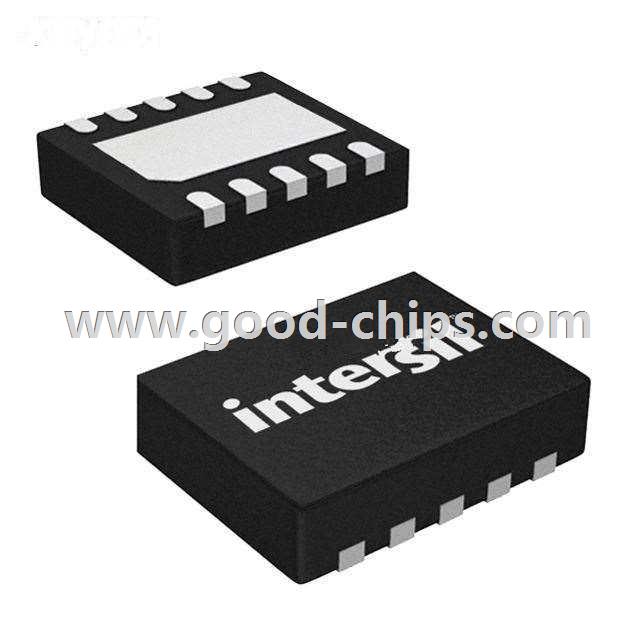

Package / Case | 10-WFDFN Exposed Pad | |
Supplier Device Package | 10-TDFN (3x3) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ISL54225IRTZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ISL54225IRTZ is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL54225IRTZ is new and unused, you can buy ISL54225IRTZ Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL54225IRTZ.
