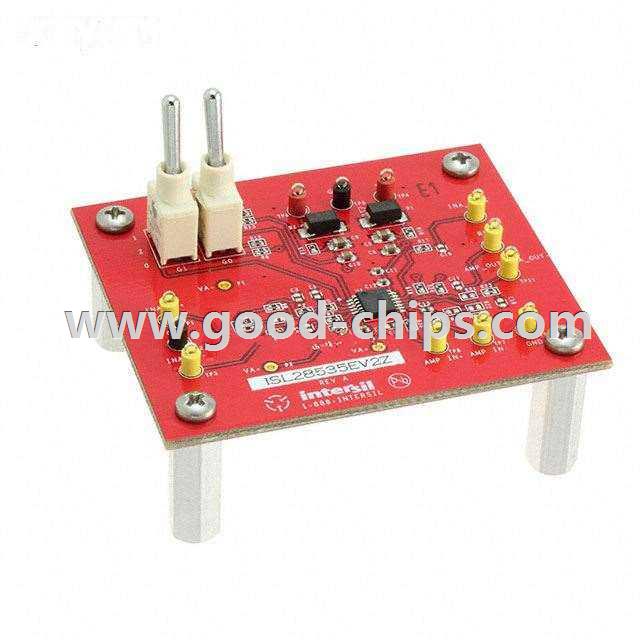

| Manufacturer Part Number: | ISL28535EV2Z |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | ISL28535 1 - Single Channels per IC Programmable Gain Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL28535EV2Z Datasheet |
| Internal Part Number | 898-ISL28535EV2Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | ISL2853x/63x Programmable Gain Instrumentation Amplifiers (PGIA) | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Intersil | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | Programmable Gain | |
| Output Type | Single-Ended | |
| Slew Rate | 0.8 V/µs | |
| -3db Bandwidth | - | |
| Current - Output / Channel | 45mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Current - Supply (Main IC) | 2.9mA | |
| Voltage - Supply, Single/Dual (±) | 2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | ISL28535 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL28535EV2Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL28535EV2Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL28535EV2Z is new and unused, you can buy ISL28535EV2Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL28535EV2Z.
