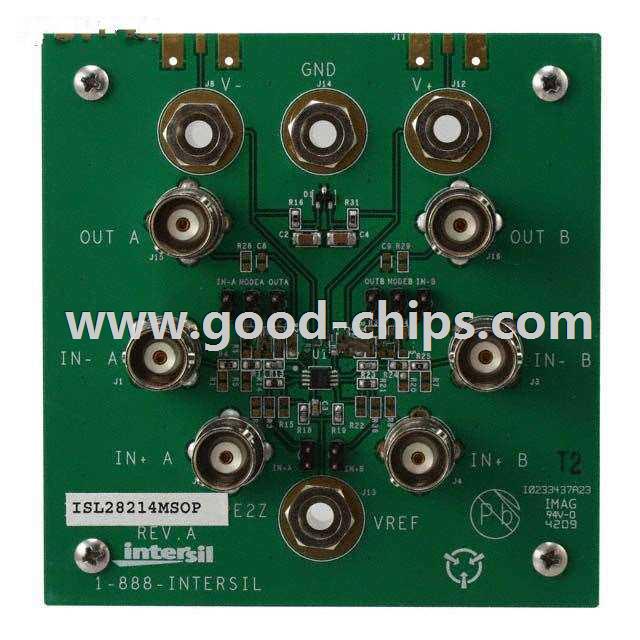

| Manufacturer Part Number: | ISL28214MSOPEVAL2Z |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ISL28214 2 - Dual Channels per IC General Purpose Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL28214MSOPEVAL2Z Datasheet |
| Internal Part Number | 898-ISL28214MSOPEVAL2Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ISL28214 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Intersil | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 2 - Dual | |
| Amplifier Type | General Purpose | |
| Output Type | Rail-to-Rail | |
| Slew Rate | 2.5 V/µs | |
| -3db Bandwidth | - | |
| Current - Output / Channel | 31mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Current - Supply (Main IC) | 300µA | |
| Voltage - Supply, Single/Dual (±) | 2.4 V ~ 5.5 V, ±1.2 V ~ 2.75 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | ISL28214 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL28214MSOPEVAL2Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL28214MSOPEVAL2Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL28214MSOPEVAL2Z is new and unused, you can buy ISL28214MSOPEVAL2Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL28214MSOPEVAL2Z.
