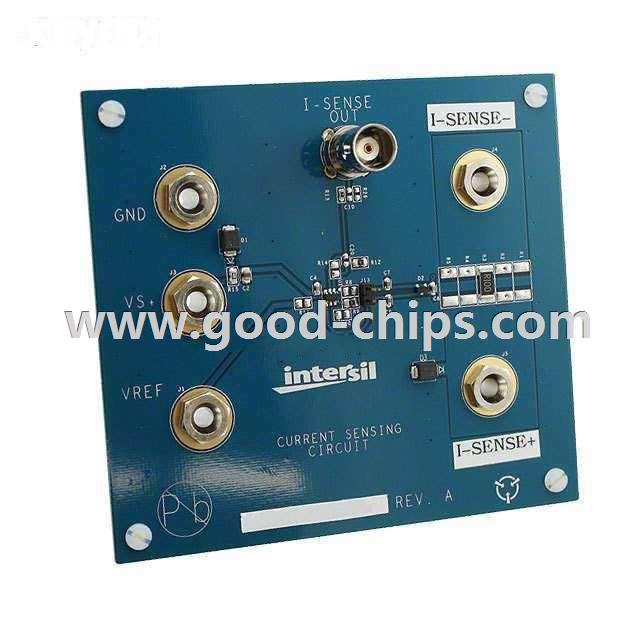

Manufacturer Part Number: | ISL28006FH-ADJEVAL1Z |
---|---|
Manufacturer: | Intersil |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |
Description: | ISL28006 1 - Single Channels per IC Current Sense Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ISL28006FH-ADJEVAL1Z Datasheet |
Internal Part Number | 898-ISL28006FH-ADJEVAL1Z | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | ISL28005/06 Application Note | |
Product Training Modules | Precision Analog: ISL28005/6 Current Sense Amps Application: Industrial Controls | |
Design Resources | Development Tool Selector | |
Online Catalog | ISL28006 Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Intersil | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Amplifier Type | Current Sense | |
Output Type | - | |
Slew Rate | 0.67 V/µs | |
-3db Bandwidth | - | |
Current - Output / Channel | - | |
Operating Temperature | - | |
Current - Supply (Main IC) | 50µA | |
Voltage - Supply, Single/Dual (±) | - | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | ISL28006 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ISL28006FH-ADJEVAL1Z | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ISL28006FH-ADJEVAL1Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL28006FH-ADJEVAL1Z is new and unused, you can buy ISL28006FH-ADJEVAL1Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL28006FH-ADJEVAL1Z.
