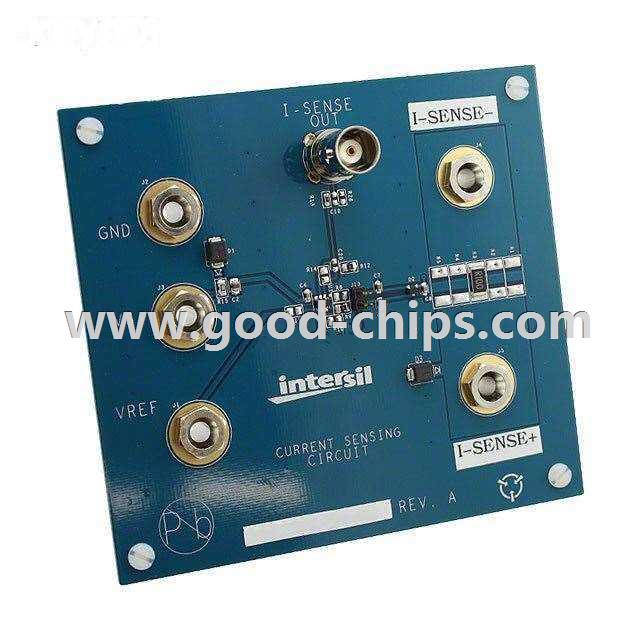

| Manufacturer Part Number: | ISL28006FH-20EVAL1Z |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | ISL28006 1 - Single Channels per IC Current Sense Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL28006FH-20EVAL1Z Datasheet |
| Internal Part Number | 898-ISL28006FH-20EVAL1Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | ISL28005/06 Application Note | |
| Product Training Modules | Precision Analog: ISL28005/6 Current Sense Amps Application: Industrial Controls | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ISL28006 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Intersil | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | Current Sense | |
| Output Type | - | |
| Slew Rate | 0.67 V/µs | |
| -3db Bandwidth | - | |
| Current - Output / Channel | - | |
| Operating Temperature | - | |
| Current - Supply (Main IC) | 50µA | |
| Voltage - Supply, Single/Dual (±) | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | ISL28006 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL28006FH-20EVAL1Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL28006FH-20EVAL1Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL28006FH-20EVAL1Z is new and unused, you can buy ISL28006FH-20EVAL1Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL28006FH-20EVAL1Z.
