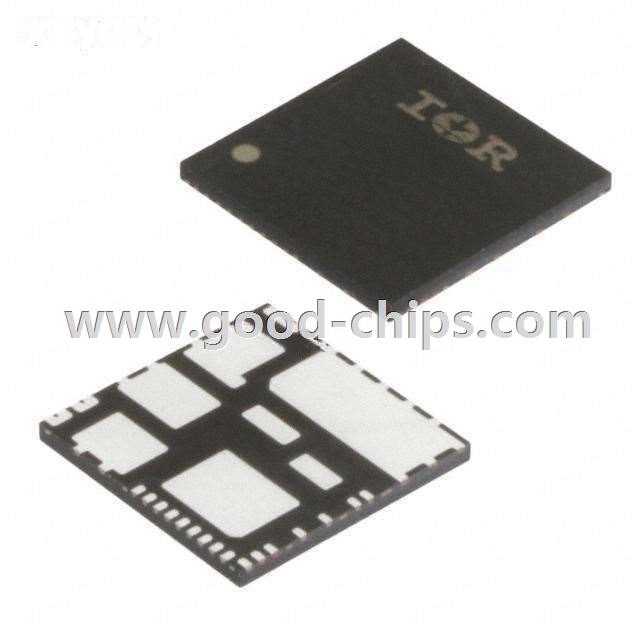

| Manufacturer Part Number: | IRSM836-024MA |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9156 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver UMOS Parallel 36-PQFN (12x12) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRSM836-024MA Datasheet |
| Internal Part Number | 898-IRSM836-024MA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | µIPM™ Integrated Power Module | |
| PCN Assembly/Origin | Multi-Chip Modules Capacity Transfer 28/Apr/2014 Additional Test Site 07/Jan/2015 | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | AC, Synchronous | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (3) | |
| Interface | Parallel | |
| Technology | UMOS | |
| Step Resolution | - | |
| Applications | Appliance | |
| Current - Output | 2A | |
| Voltage - Supply | 13.5 V ~ 16.5 V | |
| Voltage - Load | 200V (Max) | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 36-PowerVQFN | |
| Supplier Device Package | 36-PQFN (12x12) | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRSM836-024MA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRSM836-024MA is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRSM836-024MA is new and unused, you can buy IRSM836-024MA Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRSM836-024MA.
