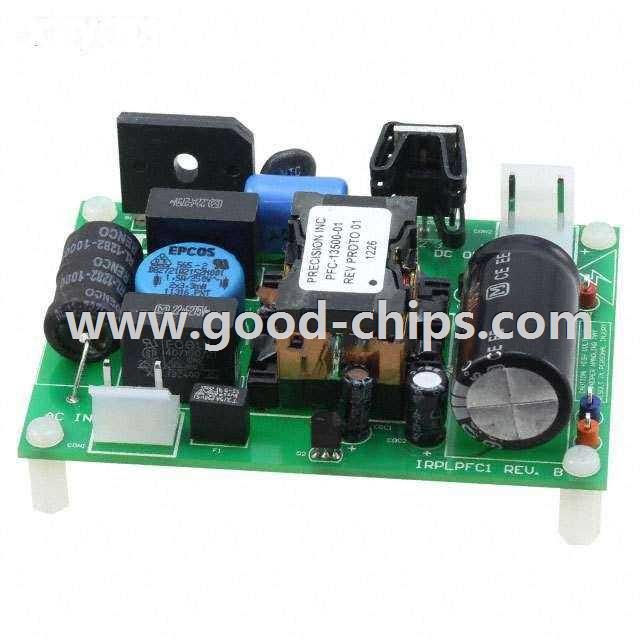

| Manufacturer Part Number: | IRPLPFC1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | IRS2500S - Power Management, Power Factor Correction Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRPLPFC1 Datasheet |
| Internal Part Number | 898-IRPLPFC1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | IRPLPFC1: 90W PFC, 425V Out, 90 ~ 270VAC in | |
| PCN Assembly/Origin | Warehouse Transfer 29/Jul/2015 | |
| Online Catalog | IRS2500S Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Power Factor Correction | |
| Embedded | No | |
| Utilized IC / Part | IRS2500S | |
| Primary Attributes | - | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRPLPFC1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRPLPFC1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRPLPFC1 is new and unused, you can buy IRPLPFC1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRPLPFC1.
