| Manufacturer Part Number: | IRMCK099MTR |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver Power MOSFET I²C, RS-232 32-QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRMCK099MTR Datasheet |
| Internal Part Number | 898-IRMCK099MTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | IRMCK099 Sensorless FOC Motor Controller | |
| PCN Assembly/Origin | QFN-IC Assembly Site Addition 21/Apr/2015 Assembly/Test Site Addition 20/Jul/2015 | |
| Online Catalog | Controllers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Infineon Technologies | |
| Series | iMOTION™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | AC, Synchronous | |
| Function | Controller - Commutation, Direction Management | |
| Output Configuration | Pre-Driver - Half Bridge (3) | |
| Interface | I²C, RS-232 | |
| Technology | Power MOSFET | |
| Step Resolution | - | |
| Applications | Appliance | |
| Current - Output | - | |
| Voltage - Supply | 3V ~ 3.6V | |
| Voltage - Load | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |

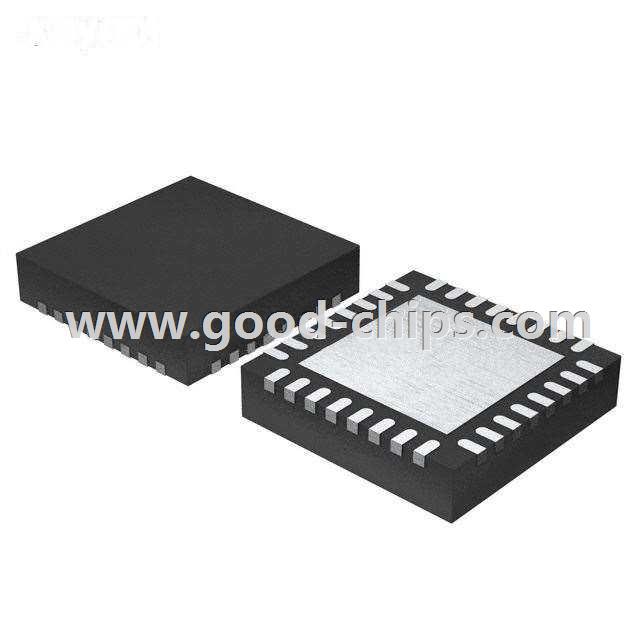

| Package / Case | 32-WFQFN Exposed Pad | |
| Supplier Device Package | 32-QFN | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRMCK099MTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRMCK099MTR is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRMCK099MTR is new and unused, you can buy IRMCK099MTR Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRMCK099MTR.
